RF Remote Controlled Surveillance Robotic Car

Description

📘 Introduction

With the rapid advancement of robotics and wireless communication technologies, surveillance systems have evolved significantly over the past few decades. Earlier surveillance methods relied heavily on fixed CCTV cameras and manual monitoring, which limited mobility and coverage. As security concerns increased in military zones, industrial areas, disaster sites, and public spaces, the need for mobile and remotely operated surveillance systems became essential. Robotics combined with wireless communication technologies such as Radio Frequency (RF) has enabled the development of efficient remote-controlled vehicles capable of operating in hazardous and inaccessible environments.

Historically, RF communication has been widely used in defense systems, remote controls, and industrial automation due to its reliability, long-range capability, and low power consumption. Integrating RF technology with embedded systems has paved the way for intelligent robotic applications. Surveillance robots are now increasingly used for bomb detection, border patrol, firefighting assistance, mining operations, and rescue missions, where human safety is at risk.

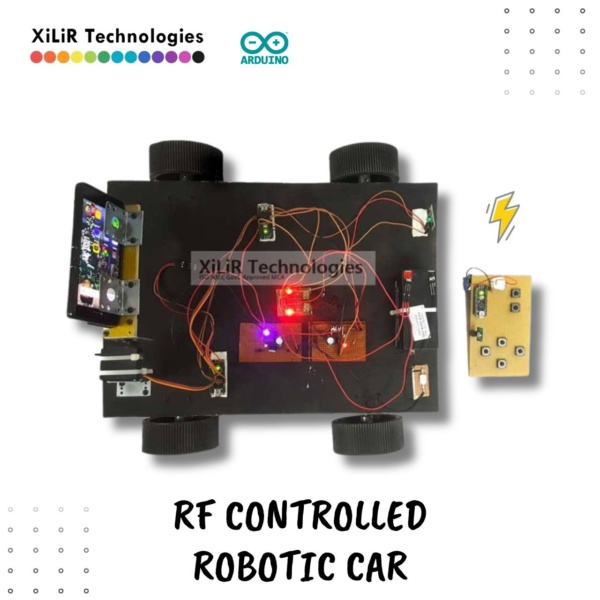

The RF Remote Controlled Surveillance Robotic Car is designed as a compact, wireless robotic system that can be controlled remotely using RF signals. The project consists of two main sections: a transmitter unit and a receiver unit. The transmitter uses multiple control buttons to send movement commands via an RF transmitter module. These signals are received by the RF receiver module mounted on the robotic car, where a microcontroller processes the commands and controls the motor driver circuit. The robotic car moves using two DC motors and includes a servo motor for directional or camera positioning control. Powered by regulated battery supply, the system ensures stable and efficient operation.

This project demonstrates the practical implementation of embedded systems, wireless communication, and robotics to develop a cost-effective, reliable, and efficient mobile surveillance solution suitable for security and monitoring applications.

🎯 Objectives

1. To design and develop a wireless RF-based remote controlled robotic car.

2. To enable remote surveillance in hazardous and hard-to-reach areas.

3. To implement reliable RF communication between transmitter and receiver units.

4. To control robotic movements using DC motors and motor driver circuits.

5. To integrate a servo motor for directional or camera movement control.

6. To develop a compact, energy-efficient, and cost-effective surveillance system.

BLOCK DIAGRAM

📦 Hardware Requirements

• Arduino Microcontroller (2x)
• 12V Battery (2x)
• Voltage Regulator (2x)
• RF Transmitter Module
• RF Receiver Module
• Push Buttons (6x)
• Motor Driver Module (L298N or similar)
• DC Motors (2x)
• Servo Motor
• Jumper Wires
• Chassis with Wheels
• Breadboard / PCB
• Switch and Connectors

💻 Software Requirements

1. Arduino IDE
2. Embedded C Programming Language
3. Arduino Libraries (RF Module Library, Servo Library)

📘 Methodology

The RF Remote Controlled Surveillance Robotic Car is developed by dividing the system into two main units: the transmitter section and the receiver section. In the transmitter unit, six push buttons are connected to a microcontroller, which encodes the control commands and sends them through the RF transmitter module. These RF signals are wirelessly transmitted to the receiver module mounted on the robotic car. The receiver microcontroller decodes the incoming signals and processes them to control the motor driver circuit. The motor driver operates two DC motors to achieve forward, backward, left, and right movements. A servo motor is integrated for directional control or camera positioning. The system is powered using 12V batteries, and voltage regulators ensure stable voltage supply to the microcontrollers and modules. The entire control logic is programmed using Arduino IDE in Embedded C. Finally, the system is tested for signal range, movement accuracy, response time, and operational stability under different working conditions.

Project titles Suggestions:

1. Design and Implementation of an RF-Based Remote Controlled Surveillance Robotic Vehicle

2. Wireless RF Communication Based Surveillance Robot for Hazardous Environment Monitoring

3. Development of a Low-Cost RF Controlled Robotic Car for Security and Surveillance Applications

4. Microcontroller-Based RF Remote Operated Mobile Surveillance System

5. Design of a Compact RF Controlled Surveillance Robot Using Embedded Systems

6. Implementation of a Dual Microcontroller RF-Based Robotic Surveillance Platform

7. Embedded System Design of an RF Remote Controlled Surveillance Vehicle

8. Wireless Controlled Robotic Vehicle for Real-Time Surveillance Applications

9. Design and Analysis of an RF Communication Based Mobile Surveillance Robot

10. Energy Efficient RF-Based Remote Operated Robotic Car for Security Monitoring

========================
