IOT based Smart Helmet for Miners Safety

Description

🏆 Award-Winning IoT Smart Helmet for Miners

# Redefining Underground Mining Safety with Real-Time Gas Detection, Wi-Fi Monitoring, Instant Alerts & Industrial IoT Technology

Built using Arduino Uno, ESP8266, MQ7, MQ135, DHT11 & IoT Cloud Monitoring. A premium final-year engineering project designed for B.Tech, M.Tech, Diploma, ECE, EEE, IoT, Robotics and Embedded Systems students.

Introduction

Mining has been one of the most crucial industries for economic development since the industrial revolution. However, it has also consistently ranked among the most dangerous occupations in the world. Historically, miners have faced life-threatening hazards such as toxic gas exposure, high temperatures, humidity, suffocation due to oxygen depletion, and physical accidents from cave-ins or equipment failure. Traditional protective helmets provided only physical protection, leaving workers vulnerable to invisible dangers like carbon monoxide, methane, and other poisonous gases.

According to the International Labour Organization (ILO), mining accounts for less than 1% of the global workforce but contributes to around 8% of all fatal workplace accidents. Data shows that in coal mining alone, methane explosions and toxic gas inhalation remain the leading causes of fatalities, especially in developing nations where safety monitoring is minimal. For instance, thousands of miners worldwide suffer from gas inhalation incidents every year, and underground temperature/humidity levels often exceed safe thresholds, increasing the risk of dehydration and heat strokes. These alarming statistics emphasise the urgent need for smart, technology-driven safety solutions.

To address these challenges, this project introduces an IoT-based Smart Helmet for Miners. The helmet integrates multiple sensors: MQ7 & MQ135 gas sensors for detecting carbon monoxide, methane, and other toxic gases. DHT11 sensor for monitoring temperature and humidity. IR sensor for shock/impact detection.

The data from these sensors is processed by an Arduino microcontroller and displayed on a 16×2 LCD screen for real-time updates. Simultaneously, the system triggers a buzzer alarm when dangerous conditions are detected and transmits live readings to an IoT dashboard via Wi-Fi (ESP8266). This enables remote monitoring by supervisors, ensuring rapid response in emergencies.

The helmet thus enhances traditional physical protection by adding an intelligent, real-time monitoring system, ensuring better safety, faster rescue operations, and improved trust in mining environments.

Objectives

1. To detect hazardous gases
2. To monitor temperature (LM35) and humidity (DHT11).
3. To display live readings on a 16×2 LCD.
4. To send real-time safety data to IoT cloud via WiFi.

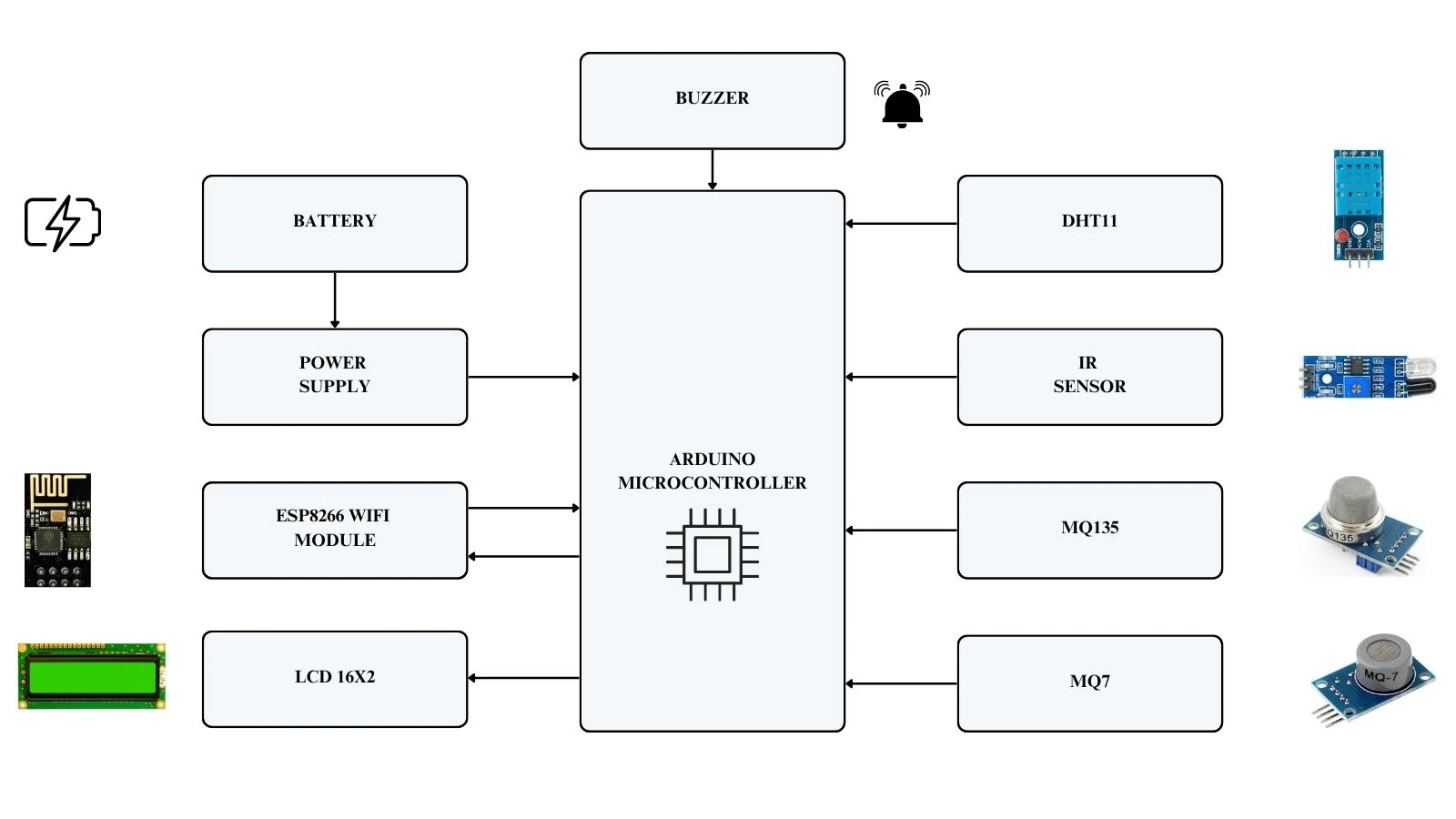

Block Diagram

Block Diagram : IOT based Smart Helmet for Miners Safety

Components Required

1. Arduino UNO
2. Voltage Regulator
3. ESP8266 Wi-Fi Module
4. 16×2 LCD Display
5. Batteries Li-ion
6. MQ7 Gas Sensor
7. MQ135 Gas Sensor
8. MQ6 Gas Sensor
9. DHT11 Sensor
10. IR Sensor
11. Buzzer 5V

Methodology

The IoT-Based Smart Helmet for Miners Safety is designed to continuously monitor hazardous underground mining conditions and provide real-time alerts to improve worker safety. The system integrates multiple environmental sensors with an Arduino Uno microcontroller and an ESP8266 Wi-Fi module for cloud connectivity.

Initially, the MQ6 gas sensor detects the presence of combustible gases such as LPG, propane, and butane, which may indicate gas leakage in mining environments. The MQ7 gas sensor continuously monitors carbon monoxide (CO), while the MQ135 gas sensor detects harmful gases including ammonia (NH₃), carbon dioxide (CO₂), benzene, smoke, and other air pollutants. Together, these three MQ sensors provide comprehensive monitoring of hazardous gases commonly encountered in underground mines. The DHT11 sensor measures ambient temperature and humidity to identify unsafe environmental conditions, while an IR sensor is incorporated for impact or helmet condition detection, helping identify potential accidents or abnormal events.

All sensor data is continuously collected and processed by the Arduino Uno. The measured values are displayed in real time on a 16×2 LCD display, allowing miners to monitor environmental conditions instantly. Whenever any sensor reading exceeds predefined safety thresholds, the Arduino activates a 5V buzzer to provide an immediate audible warning, enabling the miner to take quick preventive action.

Simultaneously, the ESP8266 Wi-Fi module transmits all sensor readings to the ThingSpeak IoT cloud platform, where supervisors and safety personnel can remotely monitor the status of miners through an online dashboard. The cloud stores historical data for analysis, allowing safety managers to identify hazardous zones, monitor environmental trends, and improve preventive safety measures.

This integrated IoT-based monitoring system provides continuous surveillance of underground mining conditions, delivers instant local and remote alerts, minimizes the risks associated with combustible and toxic gases, and significantly enhances worker safety, emergency response, and overall mining operational efficiency.

Overall Safety Decision Logic

The helmet enters an unsafe state if any one of the following conditions becomes true:

Unsafe =
(MQ7 > T1) OR
(MQ135 > T2) OR
(Temperature > 45°C) OR
(Humidity > 80%) OR
(IR Sensor = LOW)

Where:

• T1 = MQ7 (CO) gas threshold
• T2 = MQ135 air quality threshold

If Unsafe = TRUE

• 🔔 Turn ON Buzzer
• 📟 Display warning message on 16×2 LCD
• 📡 ESP8266 uploads emergency data to ThingSpeak
• 👷 Supervisor receives real-time monitoring data
• ⚠️ Miner is alerted to evacuate the hazardous area

————————————————————————–

IoT smart helmet for miners, the future of mining, advanced smart helmet for miners, stay safe underground with our innovative helmet for miners, smart helmet for miners, real-time monitoring and protection, protective smart helmet for miners, your safety solution, experience next-level safety with our smart helmet for miners, ultimate helmet for miners,I oT smart helmet for miners, smart helmet project, Arduino smart helmet, mining safety project, IoT mining safety, gas detection helmet, MQ7 gas sensor project, MQ135 Arduino project, ESP8266 IoT project, ThingSpeak Arduino project, smart mining helmet, coal mine safety system, industrial safety project, hazardous gas detection, Arduino IoT projects, final year IoT project, embedded systems project, engineering project, ECE project, BTech project, MTech project, mining automation, worker safety helmet, smart wearable project, XiLiR Technologies

IOT based Smart Helmet for Miners working in Hazardous Areas

Iot Based Smart Helmet For Coal Mining Tracking

#IoTSmartHelmet #ArduinoProjects #MiningSafety#WorkerSafety #GasDetection #ArduinoUNO#IoTMonitoring #FinalYearProject #CapstoneProject#SmartMining #IndustrialSafety

✨ Key Features

1. ✅ Gas Detection (CO, CO₂, NH₃, Benzene, etc.) with MQ7 & MQ135 sensors
2. 🌡️ Environmental Monitoring – DHT11 measures temperature & humidity
3. 👁️ IR Sensor for shock & condition detection
4. 📟 16×2 LCD Display – shows real-time values
5. 📡 IoT Dashboard (ThingSpeak) – remote data monitoring via Wi-Fi
6. 🔔 Buzzer Alerts for unsafe gas levels
7. 🔋 Rechargeable battery-powered for field use
8. 🎓 Ready-to-use academic project with docs, PPT, and training support

================

# 🔖 What’s Included in Your Smart Cooling Helmet Project Kit?

💯 Fully Working & Assembled – Just plug and present
📘 Academic Docs – Includes synopsis, PPT, report & diagrams
🔄 Circuit & Block Diagrams – Clear and labelled
💻 Arduino Code + Training – Upload & customize easily
⚙️ Working Principle Explained – Easy-to-understand logic
📦 Component Specs + BOM – All parts documented
📑 Datasheets Provided – For sensors and modules
🔌 Wiring Guide – Step-by-step interfacing
🎓 Viva Q&A Help – With expert support via WhatsApp
🚚 COD & Delivery – Safe shipping across India
🧰 Demo Ready – Easy to disassemble & explain
🙌 Custom Help – Need extras? Just ask!
❓Need custom features or upgrades? Just ask – We’re happy to help! 🙌

================

Get the full working project with components, code, diagrams & explanation

No branding on project, handmade look for students, and different styles as required by students.

To Buy/ Make this project with training
