IOT based Dual Axis Solar Panel Monitoring System

Description

#IoTSolarTracking #SmartEnergy #ArduinoProjects #GreenEnergyProject

#SolarPanelMonitoring #ArduinoUNO #FinalYearProject #CapstoneProject

This is Award-Winning Project you can select this as your major project, capstone project, competition, exhibition projects etc. (Highly Recommended)

📘 Introduction

As the demand for renewable energy is increasing, solar panels have become one of the most widely used technologies in sustainable power generation. However, fixed solar panels fail to utilise maximum sunlight throughout the day due to continuous changes in the sun’s position. This results in reduced efficiency and lower power output. To overcome this limitation, solar tracking systems are employed, which automatically adjust the panel orientation to face the sun.

This project demonstrates an IoT-Based Dual Axis Solar Panel Monitoring and Tracking System using Arduino UNO. Unlike single-axis trackers, the dual-axis system tracks the sun’s movement in both horizontal (azimuth) and vertical (elevation) directions, ensuring maximum solar exposure throughout the day. The system uses four LDR sensors arranged in pairs to detect sunlight intensity in both axes. Based on these readings, two DC motors controlled via L293D motor drivers rotate the solar panel for precise alignment.

In addition to tracking, the project integrates a DHT11 temperature and humidity sensor, solar voltage measurement using a voltage divider circuit, and a current sensor for real-time power monitoring. All sensor values are displayed locally on a 16×2 LCD display.

For IoT functionality, an ESP8266 Wi-Fi module uploads temperature, humidity, voltage, and current data to the ThingSpeak cloud platform, enabling remote monitoring and graphical analysis. The system operates on a 12V rechargeable battery, making it portable, efficient, and suitable for real-world renewable energy applications. The dual-axis tracking mechanism significantly improves energy generation and overall system efficiency.

🎯 Objectives

1. To track the sun’s position using dual-axis LDR-based sensing
2. To rotate the solar panel in both horizontal and vertical directions
3. To monitor solar panel voltage and current in real time
4. To measure temperature and humidity using DHT11
5. To display all sensor readings on a 16×2 LCD
6. To upload IoT data to ThingSpeak cloud using ESP8266
7. To enhance overall solar energy efficiency

📊 Block Diagram

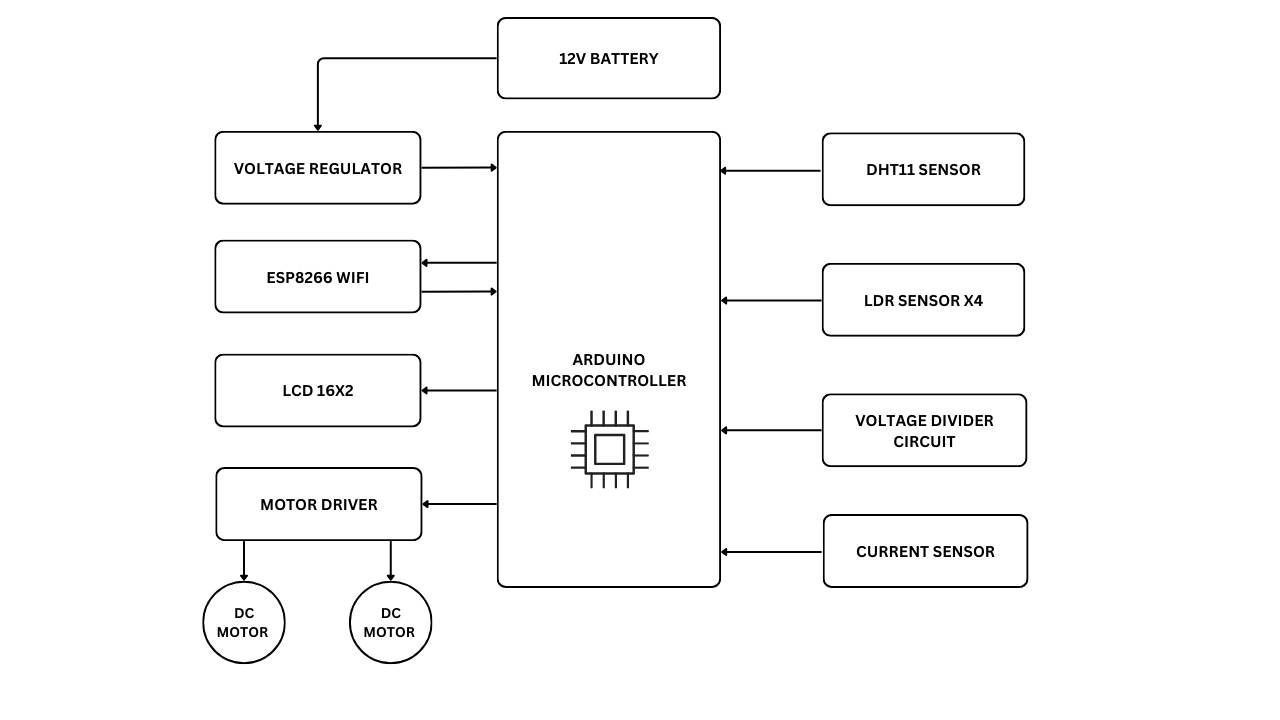

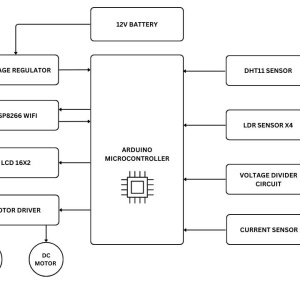

                                                       Block Diagram: IoT Based Dual Axis Solar Panel Monitoring System

🔁 System Overview

• Arduino UNO – Main microcontroller unit.
• DHT11 Sensor – Monitors temperature & humidity.
• LDR Sensors (4 pcs) – Detect sunlight intensity on both sides of the panel.
• L293D Motor Driver + DC Motor – Rotates the solar panel on single axis.
• Voltage Divider Circuit – Measures solar panel voltage.
• Current Sensor – Monitors real-time current output.
• 16×2 LCD Display – Shows temperature, humidity, voltage, and current values.
• ESP8266 Wi-Fi Module – Uploads sensor data to IoT cloud (ThingSpeak).
• 12V Rechargeable Battery – Power source for the system.

🛠️ Components Required

1. Arduino UNO
2. ESP8266 Wi-Fi Module
3. L293D Motor Driver
4. DC Motor (connected to solar panel axis)
5. 16×2 LCD Display
6. DHT11 Sensor
7. LDR Sensors (x4)
8. Voltage Divider Circuit (Resistors)
9. Current Sensor Module
10. 12V Rechargeable Battery
11. Jumper Wires & Connectors

⚙️ Methodology

The system functions by constantly checking the intensity of sunlight through two LDR sensors located on opposite sides of the solar panel. Arduino UNO takes readings and compares them. When one LDR gets more sunlight than the other, Arduino triggers a signal to the L293D motor driver, which turns the DC motor until the solar panel receives maximum sunlight. This maximizes orientation throughout the day.In addition to tracking, the system also keeps an eye on temperature and humidity using the DHT11 sensor, and voltage and current provided by the solar panel using a voltage divider circuit and current sensor. These values are shown on the 16×2 LCD display for real-time monitoring.For remote monitoring, the Arduino interacts with the ESP8266 Wi-Fi module, which sends all the sensor readings to the ThingSpeak IoT cloud. The users can view live graphical trends of voltage, current, and environmental parameters remotely. The entire system is powered by a 12V rechargeable battery, thus being self-sustainable and IoT-compatible.

💡 Title Suggestions

• IoT Based Single Axis Solar Panel Monitoring & Tracking System using Arduino
• Arduino Powered Smart Solar Tracking with IoT Monitoring
• IoT Enabled Solar Energy Efficiency System with ESP8266
• Real-Time Solar Panel Voltage & Current Monitoring with Arduino UNO
• Smart Solar Panel Tracker with Cloud-Based IoT Monitoring

📌 SEO Tags

iot solar tracking project, arduino solar panel monitoring, single axis solar tracking system, thingspeak solar panel monitoring, iot based renewable energy project, solar tracker using ldr and arduino, current and voltage monitoring solar panel, smart solar energy project with esp8266, arduino uno solar tracking system, iot enabled solar energy efficiency, solar monitoring final year project, dht11 solar panel monitoring project, iot engineering projects renewable energy, esp8266 solar power monitoring, arduino motor driver solar tracking

🔖 What’s Included in Your IoT Solar Monitoring Project Kit?

💯 Fully Working & Assembled
📘 Docs – Includes synopsis, PPT, report & diagrams
🔄 Circuit & Block Diagrams – Clear and labelled
💻 Arduino Code + Training – Upload & customize easily
⚙️ Working Principle Explained
📦 Component Specs + BOM
📑 Datasheets Provided – For sensors and modules
🔌 Complete Wiring Guide
🎓 Viva Q&A Help – With expert support via WhatsApp
