IoT and AI based Smart Refrigerator with Food Spoilage Detection

Description

#IoTSmartFridge #FoodSpoilageDetection #SmartRefrigerator

Award-Winning Capstone Project Idea: IoT and AI Smart Fridge for Food Spoilage Detection – Perfect for Final Year Engineering Students (CSE, ECE, EEE, Mechanical, Science)

Introduction

Food preservation has been a fundamental human necessity since ancient times, evolving from primitive techniques such as drying and salting to modern refrigeration systems. The invention of the refrigerator in the early 20th century revolutionized food storage by significantly slowing microbial growth and biochemical reactions responsible for spoilage. Today, refrigeration is an indispensable component of households, commercial food systems, and healthcare storage. However, despite technological advancements, food spoilage remains a critical global issue, contributing to economic losses, environmental impact, and health risks.

According to global food sustainability reports, approximately one-third of all food produced for human consumption is lost or wasted annually, amounting to nearly 1.3 billion tons. A significant portion of this waste occurs at the consumer and storage level due to improper monitoring of food conditions inside refrigerators. Conventional refrigeration systems primarily focus on temperature control, neglecting other crucial parameters such as gas emissions, humidity variations, and real-time spoilage indicators. As a result, users often rely on manual inspection, which is inefficient, subjective, and prone to error.

Food spoilage is primarily caused by microbial activity, oxidation, and enzymatic reactions, which lead to the release of gases such as alcohols, methane, and other volatile organic compounds (VOCs). The presence and concentration of these gases can serve as reliable indicators of food freshness. Therefore, integrating gas sensing mechanisms into refrigeration systems provides a scientific and automated approach to detect spoilage at an early stage.

With the rapid growth of the Internet of Things (IoT) and embedded systems, there is a paradigm shift toward intelligent and connected appliances. Smart refrigeration systems are emerging as a promising solution, enabling real-time monitoring, remote access, and data-driven decision-making. Cloud platforms further enhance these systems by providing data visualization, analytics, and predictive insights.

By combining sensing, automation, and IoT connectivity, the proposed system aims to reduce food wastage, improve consumer awareness, and contribute to sustainable food management practices, aligning with modern smart home and smart city initiatives.

Objectives

1. To design an IoT-based smart refrigerator system for real-time monitoring of food storage conditions.

2. To detect food spoilage using MQ3 gas sensor based on a defined threshold (e.g., >1800 ppm).

3. To implement an automatic alert mechanism using ISD1820 voice module for user notification.

4. To monitor and display temperature and humidity using DHT11 and 16×2 LCD.

5. To enable cloud-based data visualization and analysis using ThingSpeak for remote monitoring.

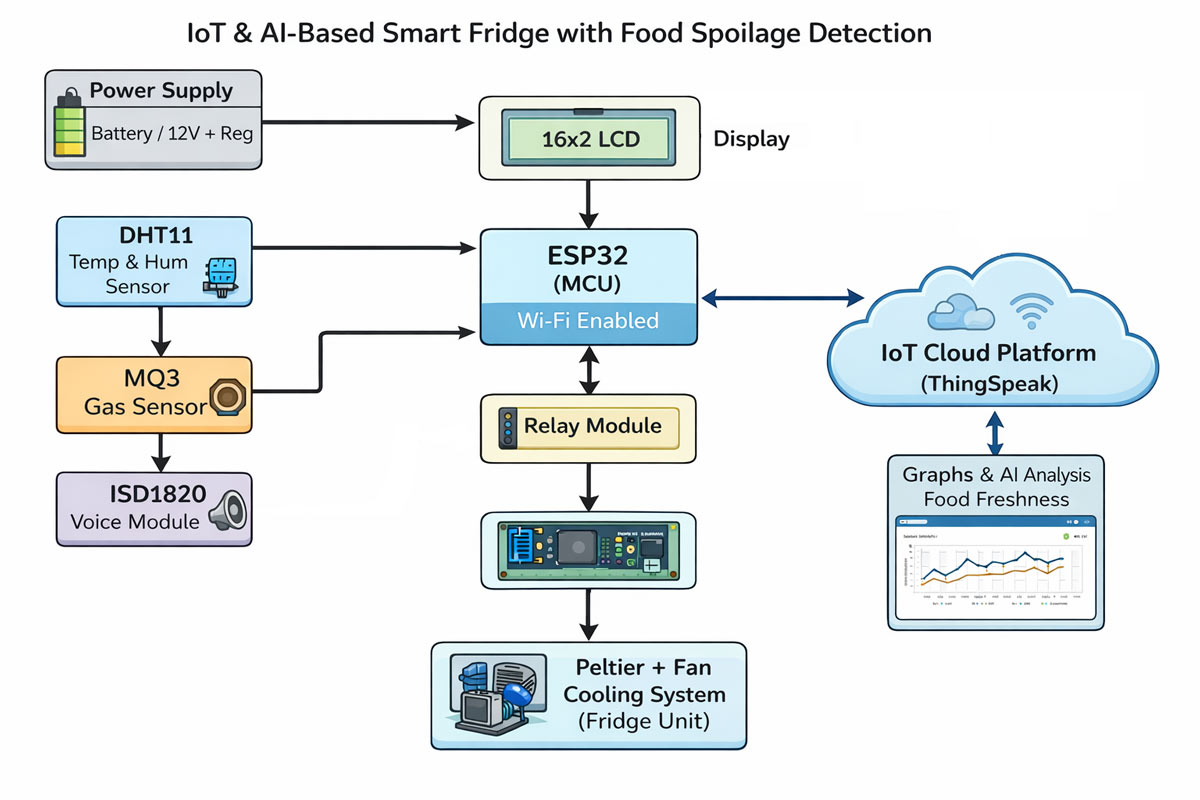

Block Diagram

Components Required

1. ESP32 (38 Pins)

2. MQ3 Gas Sensor

3. DHT11 Sensor

4. 16×2 LCD Display

5. ISD1820 Voice Module

6. Peltier Module (Thermoelectric Cooler)

7. Cooling Fans (Internal & External)

8. Relay Module

9. Power Supply / Battery

10. Connecting Wires

Methodology

The system continuously monitors the internal condition of the refrigerator using MQ3 gas sensor and DHT11 sensor. The MQ3 sensor detects gases released from spoiled food, and when the value exceeds 1800 ppm, the system activates a voice alert through the ISD1820 module. Temperature and humidity data are displayed on a 16×2 LCD for local monitoring. The ESP32 processes all sensor data and uploads it to the ThingSpeak cloud for real-time remote access. The Peltier module, along with an external heat dissipation fan and internal air circulation fan, maintains proper cooling inside the refrigerator. This integrated system ensures efficient food monitoring, spoilage detection, and smart refrigeration.

The gas sensor output is analog and proportional to gas concentration. The sensor resistance is calculated using:

Rs = RL × ((Vc − Vo) / Vo)

where:
Rs = sensor resistance
RL = load resistance
Vc = supply voltage
Vo = output voltage

The ratio (Rs / R0) is used to estimate gas concentration in ppm, where R0 is the sensor resistance in clean air.

Food Spoilage Levels (Based on MQ3 Output)

1. 0 – 400 ppm → Fresh Food (Safe)

2. 400 – 1000 ppm → Slight Change (Still Safe)

3. 1000 – 1800 ppm → Warning Level (Check Food)

4. 1800 ppm → Spoiled Food (Unsafe, Alert Triggered)

Temperature inside the refrigerator is maintained using a Peltier module, which follows the thermoelectric cooling principle:

Q = αIT − (1/2)I²R − KΔT

where:
Q = heat absorbed
α = Seebeck coefficient
I = current
R = electrical resistance
K = thermal conductance
ΔT = temperature difference

The system maintains internal temperature up to 10°C, suitable for food preservation.

Humidity is calculated using DHT11 sensor:

RH = (Actual Water Vapor / Saturation Vapor Capacity) × 100

The ESP32 processes all sensor data and performs threshold comparison. When gas concentration exceeds 1800 ppm, the system activates the ISD1820 voice module to generate an audio alert. Simultaneously, real-time data (gas level, temperature, humidity) is displayed on a 16×2 LCD and transmitted to the ThingSpeak cloud platform via WiFi for remote monitoring and visualization.

The cooling system consists of a Peltier module with an external heat dissipation fan and an internal air circulation fan, ensuring uniform cooling inside the refrigerator chamber. This integrated approach enables intelligent food monitoring, early spoilage detection, and efficient refrigeration.

AI Integration Using ThingSpeak

Artificial Intelligence can be integrated into the system using ThingSpeak MATLAB Analytics, where sensor data such as gas level, temperature, and humidity collected by ESP32 is stored and analyzed in the cloud. This allows the system to go beyond simple monitoring and perform intelligent data processing based on past readings.

The uploaded data is first processed using basic filtering techniques to remove noise and improve accuracy. Then, trend analysis is applied to observe changes in gas concentration over time. If the gas level shows a continuous increasing pattern, the system can identify early signs of food spoilage even before reaching the fixed threshold of 1800 ppm.

Simple AI models such as moving average and regression are used to predict future gas values. For example, predicted gas can be calculated using trend-based formulas or averaging previous readings. If the predicted value crosses the threshold, the system generates an early alert, helping to prevent food wastage.

Additionally, ThingSpeak provides graphical visualization of gas trends, temperature variations, and predicted spoilage behavior. This makes the system more intelligent and user-friendly by enabling real-time monitoring along with predictive analysis.

🔷 How AI Will Work in This Project

✔ Trend analysis (gas level pattern over time)
✔ Prediction (future spoilage level using MQ3 data)
✔ Anomaly detection (sudden gas spike detection)
✔ Cloud analytics (ThingSpeak MATLAB / Python ML)

🔷 MATLAB Code (ThingSpeak AI Logic)

You can:

Example:

#ESP32Project #MQ3GasSensor #DHT11Sensor #IoTMonitoring #ThingSpeak #SmartKitchen

IoT smart refrigerator, smart fridge project, food spoilage detection, food freshness monitoring, ESP32 project, MQ3 gas sensor project, DHT11 temperature humidity project, IoT food monitoring system, smart kitchen project, ThingSpeak IoT project, ESP32 IoT project, gas sensor food detection, smart refrigerator system, food safety monitoring system, final year engineering project, capstone project idea, Arduino IoT projects, AI based fridge system, smart home IoT project, real time food monitoring, food quality monitoring system, low cost IoT project, engineering project ideas, BTech final year project, ECE project IoT, CSE hardware project, EEE IoT project, mechanical smart fridge project

Project Titles : Students can used for their Project

• Advanced Smart Refrigeration System for Food Freshness Analysis Using ESP32, Gas Sensor MQ3 and IoT Cloud Monitoring

• Automated Food Quality Detection Fridge with Real-Time Alerts Using IoT, AI Processing and Environmental Sensors

• ESP32-Based Smart Cooling System with Gas Detection, Food Safety Monitoring and ThingSpeak Data Visualization

• Next-Generation Smart Fridge for Food Spoilage Identification Using Sensor Fusion, Cloud Connectivity and Alert System

• Low-Cost Intelligent Refrigerator Model for Food Safety Monitoring Using Gas Sensors, Temperature Tracking and IoT Platform
