Footstep Energy Generation using Piezoelectric sensor

Description

This is Award-Winning Project you can select this as your major project, capstone project, competition, exhibition projects etc. (Highly Recommended)

INTRODUCTION

In this project, we utilize piezoelectric modules to harness mechanical energy from footstep pressure, generating a  6V of electrical energy. This energy is then efficiently stored in a 4V battery. To achieve the desired 12V charging level for the battery, we employ a voltage booster. Once the battery reaches its target voltage, a DC to AC circuit is employed to convert the direct current into alternating current (AC). Finally, by simply flipping a switch, the AC current powers a bulb, causing it to glow. This innovative system presents several advantages, including environmentally-friendly energy harvesting from footstep pressure, efficient voltage conversion with the voltage booster, and the ability to power an AC device using the stored energy, providing illumination through the bulb.

BLOCK DIAGRAM

BLOCK DIAGRAM: Footstep Energy Generation using Piezoelectric sensor

HARDWARE COMPONENTS

• PIEZOELECTRIC MODULES x10
• BATTERY Lead Acid 4v (x4)/ 3.7vx4 Li-ion
• VOLTAGE BOOSTER
• DC TO AC CONVERTOR
• SWITCHES
• BULB WITH HOLDER
• WIRES FOR CONNECTION

———————————————————————–

Piezoelectric Sensor – Theory, Working, History and Equations

A piezoelectric sensor is a device that converts mechanical energy such as pressure, force, or vibration into electrical energy using the piezoelectric effect. This effect is observed in certain materials like quartz, ceramics, and some polymers. When these materials are subjected to mechanical stress, they generate an electric charge across their surfaces. Similarly, when an electric field is applied, they can also produce mechanical deformation, making them useful in both sensing and actuation applications.

History

The piezoelectric effect was discovered in 1880 by two French scientists, Jacques Curie and Pierre Curie. They found that certain crystals generate electrical charge when mechanical pressure is applied. Later, the reverse piezoelectric effect was also discovered, where applying voltage causes the material to deform. Over time, this principle has been widely used in sensors, actuators, medical devices, and energy harvesting systems.

Materials Used in Piezoelectric Sensors

Piezoelectric effect occurs only in specific materials. Commonly used materials include:

• Quartz (SiO₂) – natural crystal with stable properties
• Lead Zirconate Titanate (PZT) – most widely used ceramic material
• Barium Titanate (BaTiO₃) – ceramic with good sensitivity
• Zinc Oxide (ZnO) – used in thin-film applications
• Polyvinylidene Fluoride (PVDF) – flexible polymer material

Among these, PZT (Lead Zirconate Titanate) is most commonly used due to its high efficiency and strong piezoelectric effect.

🔌 Output Voltage (Observed)

⚡ Current Output (Practical Range)

Ipractical​≈1mA (peak with capacitor)

🔋 Battery Charging (Realistic Statement)

Realistic full charging, write:

• System supports slow charging / trickle charging
• Battery voltage gradually increases over time
• Example observation:

3.7V battery increased to 3.8V in 60 minutes (continuous tapping)

⚡Power Calculation

P=V×I

P=12×0.001=0.012W

“The system efficiency can be further improved by using multilayer piezo stacks, mechanical amplifiers, and high-efficiency boost converters.”

———————————————————————–

Working Principle:

This system works on the piezoelectric effect, where mechanical pressure from footsteps is converted into electrical energy. When a person steps on the piezoelectric sensors, force is applied, generating electrical charge and voltage.

The generated charge is:
Q = d × F

The generated voltage is:
V = Q / C

In this project, 10 piezo sensors are connected in parallel to increase current output:
I_total = I1 + I2 + … + I10

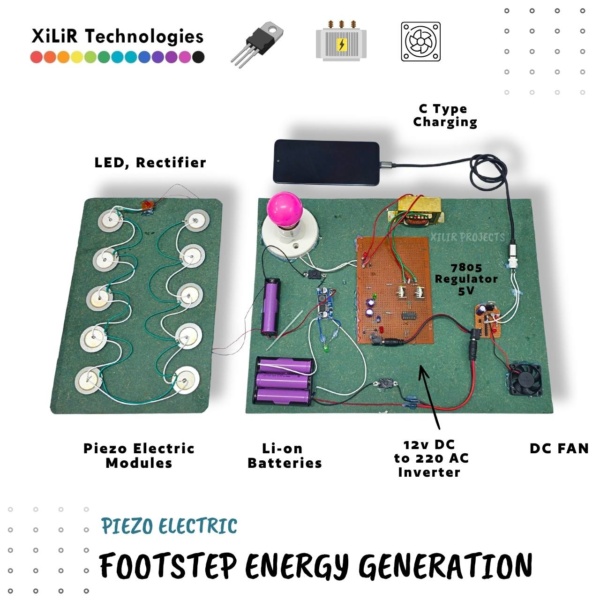

When footsteps are applied, the sensors produce voltage pulses which are used to glow a bulb instantly. The output is passed through a diode to charge a 3.7V battery. A voltage booster increases the voltage to around 17V to charge a 12V battery, and an inverter converts it into 220V AC for powering a bulb.

Applications: Piezoelectric sensors are used in a variety of applications, including:

1. Acoustic Sensors: Piezoelectric microphones and hydrophones convert sound waves into electrical signals.
2. Pressure Sensors: They measure pressure changes and are used in industrial processes, automotive tire pressure monitoring, and medical devices like blood pressure monitors.
3. Vibration and Impact Sensing: Piezoelectric sensors can measure vibrations and impacts in machines, buildings, and infrastructure for condition monitoring and fault detection.
4. Ultrasound Imaging: In medical imaging, piezoelectric transducers emit and receive ultrasound waves for imaging internal body structures.
5. Energy Harvesting: Piezoelectric materials can convert vibrations and mechanical motions into electrical energy, which can be used to power low-power devices.
6. Touch and Force Sensing: They can be used in touchscreens and touch-sensitive interfaces to detect touch and pressure variations.

Usage Tips: When using piezoelectric sensors, consider the following:

• Signal Conditioning: The raw voltage output from a piezoelectric sensor might be noisy and require amplification and filtering to obtain accurate measurements.
• Protection: Mechanical overload or excessive stress can damage piezoelectric sensors. Mechanical or electrical protection might be necessary in some applications.
• Temperature Effects: Piezoelectric materials can be sensitive to temperature variations, which might affect their performance. Compensation or temperature control might be needed in certain cases.
• Calibration: Sensors may need calibration to ensure accurate measurements, as their sensitivity might vary due to manufacturing differences.
• Frequency Range: Different piezoelectric materials have varying frequency response ranges. Choose a sensor that matches the frequency range of your intended application.
