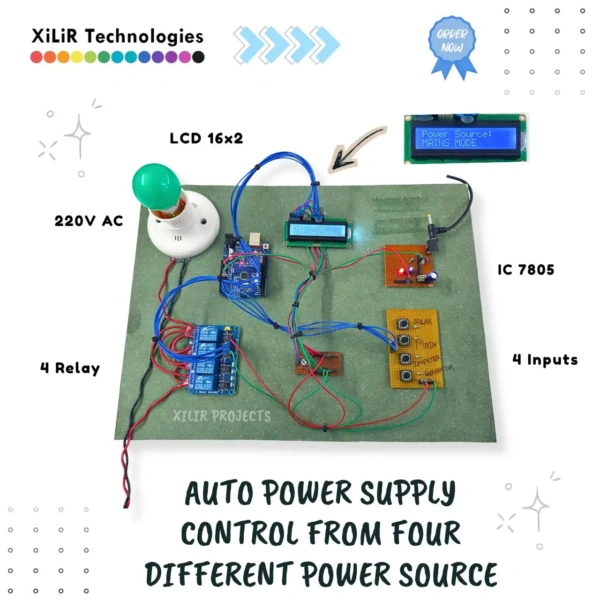

AUTO POWER SUPPLY CONTROL FROM 4 DIFFERENT SOURCES
Auto power supply Control System from Four Different Sources
☀️ Solar Power + 🔌 AC Mains + 🔋 Battery Backup + 🔄 Inverter → ⚙️ Smart Switching Circuit → 💡 Uninterrupted Electrical Output
INTRODUCTION

The Auto Power Supply Control from Different Power Sources project offers a cutting-edge and advantageous solution for ensuring seamless and efficient power supply across various settings. This project’s main goal is to achieve automatic switching between multiple power sources, resulting in a stable power output, heightened dependaility, and reduced downtime. With this innovative system in place, users can experience uninterrupted power flow, significantly enhancing overall productivity and convenience.

Importance of the Project

This system plays a crucial role in:

• Ensuring uninterrupted power in hospitals and industries
•  Providing reliable backup in homes
•  Improving energy utilization from multiple sources
•  Reducing downtime and increasing efficiency

Power interruptions are a critical issue in modern electrical systems, leading to major economic and safety concerns worldwide. According to the World Bank and global energy studies, power outages cost economies billions of dollars annually, while the Central Electricity Authority reports that many regions in India still experience frequent outages and voltage instability. Studies also indicate that even a 1-hour power outage can cause up to 5–10% productivity loss in small industries, and critical sectors like hospitals require 100% uninterrupted power availability. A major problem is that switching between available sources such as AC mains, solar, inverter, and generator is often done manually, resulting in delays of several seconds to minutes, increased human error, and potential damage to sensitive equipment.

Initially, power supply systems relied entirely on manual switching, which was inefficient and unreliable. Later, Automatic Transfer Switch (ATS) systems using relays were introduced, reducing switching time but lacking flexibility and intelligence. With the advancement of embedded systems, microcontrollers like Arduino now enable real-time monitoring and automated decision-making, allowing efficient management of multiple power sources. Despite this progress, there is still a strong need for a low-cost, scalable, and intelligent system capable of handling multiple inputs efficiently.

This project addresses these challenges by developing an Arduino-based Auto Power Supply Control System that manages four different power sources: AC main, solar, inverter, and generator. The system continuously monitors source availability and uses relay modules to switch the load automatically based on priority logic within milliseconds, ensuring minimal interruption. An LCD display provides real-time status of the active source, improving system transparency and usability. By eliminating manual intervention, the system reduces switching delay by up to 80–90%, increases reliability, and ensures optimal utilization of available energy sources.

The importance of this project lies in its ability to provide uninterrupted power supply, which is essential for critical applications such as hospitals, data centers, and industrial operations. It enhances system efficiency, reduces downtime, and protects electrical equipment from sudden failures. Additionally, by integrating renewable sources like solar power, it supports sustainable energy usage. Overall, this system offers a cost-effective, reliable, and intelligent solution for modern power management, addressing real-world challenges associated with power instability and multi-source utilization.

OBJECTIVE

• To design and develop an automatic power supply control system using Arduino.
• To ensure uninterrupted power supply by switching between four sources (AC mains, solar, inverter, generator).
• To eliminate manual intervention and reduce switching delays.
• To implement priority-based automatic source selection for efficient energy management.
• To display the current active power source on an LCD for real-time monitoring.

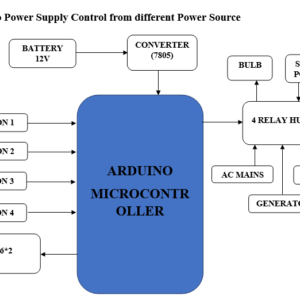

BLOCK DIAGRAM

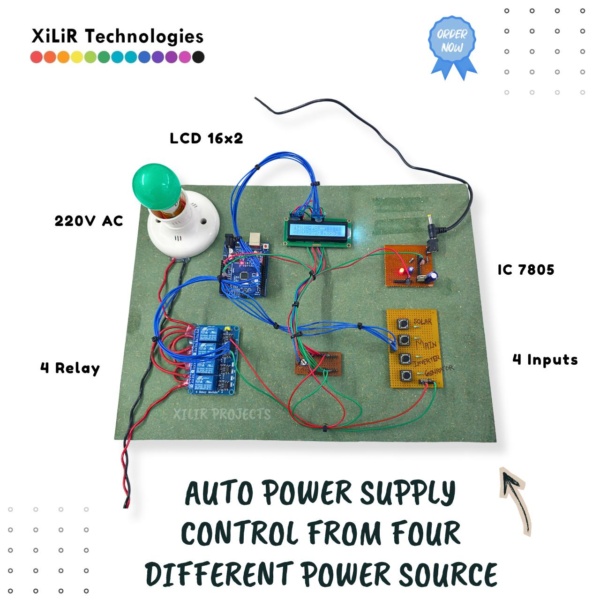

HARDWARE COMPONENTS

• ARDUINO (MICRO CONTROLLER)
• BATTERY
• VOLTAGE REGULATOR
• RELAY (4X)
• BUTTON (4X)
• LCD DISPLAY
• BULB
• SOLAR POWER
• INVERTER
• GENERATOR
• AC MAIN
• JUMPER WIRES

SOFTWARE

• ARDUINO IDE
• EMBEDDED C

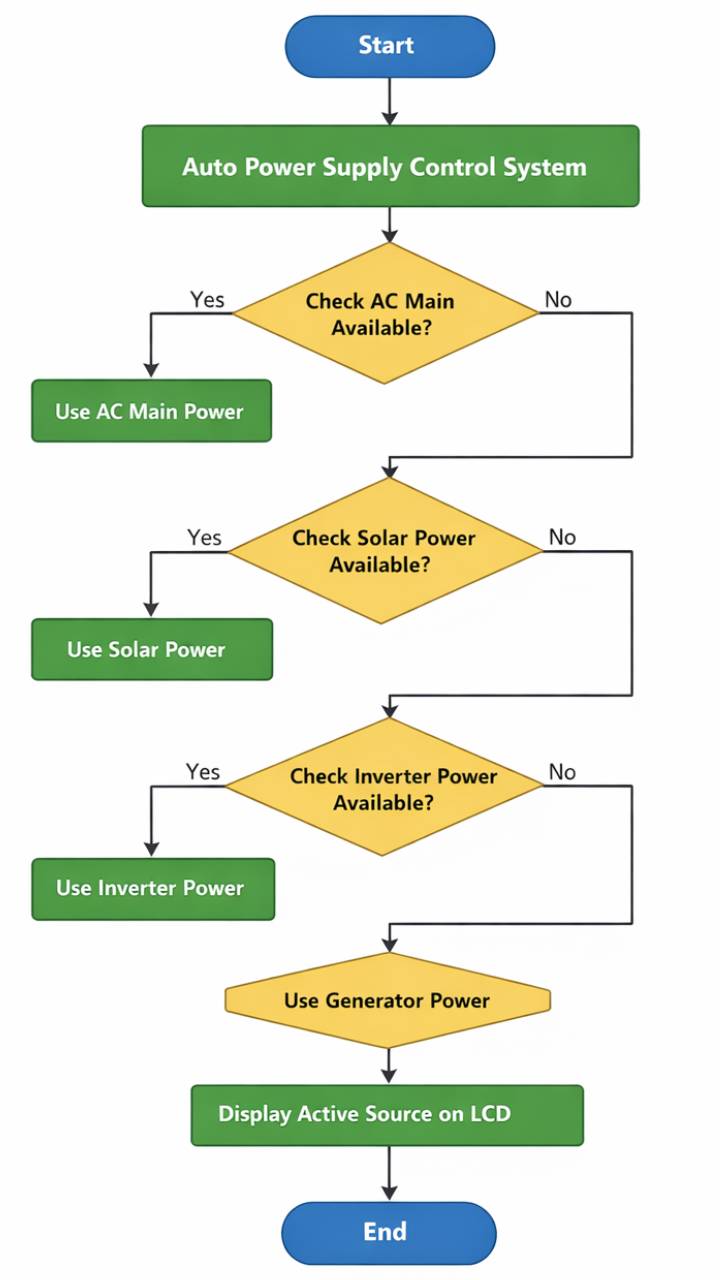

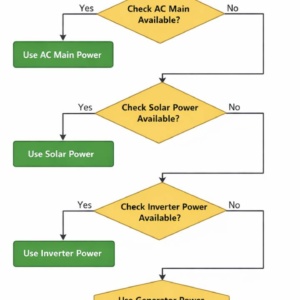

Flow Chart
