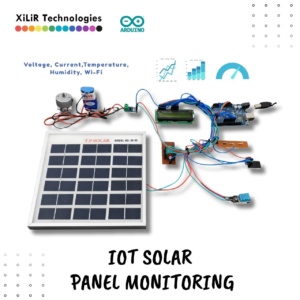

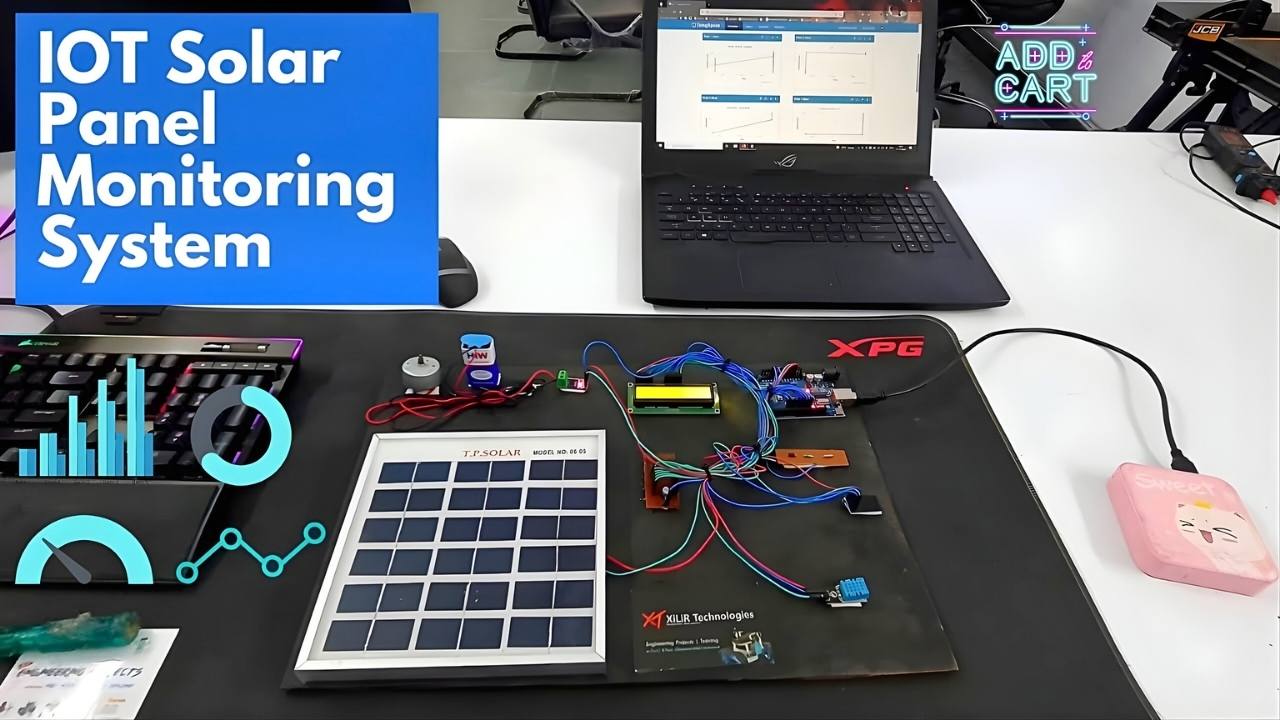

IOT Based Solar Panel Monitoring System Using Arduino & ESP8266

Description

A smart IoT-enabled solar monitoring system that continuously tracks solar panel performance in real time ⚡, analyses environmental and electrical parameters 🌍, and improves energy efficiency through intelligent monitoring 📡.

— If voltage/current drops below expected level → ❌ Solar Performance Risk
— If temperature or environmental conditions rise abnormally → ⚠️ Efficiency Loss Warning
— If all parameters remain stable → ✅ Solar System Operating Normally

Highly Recommended for Major Projects, Capstone Projects, Renewable Energy Research, Smart Energy Exhibitions, and Industry 4.0 Applications.

📘 Introduction

Solar energy has emerged as one of the most promising renewable energy sources for sustainable power generation. With increasing global demand for clean energy, photovoltaic (PV) systems are widely deployed in residential, industrial, and utility-scale applications. However, maintaining optimal performance of solar panels requires continuous monitoring of electrical output and environmental conditions. Variations in sunlight intensity, temperature rise, dust accumulation, or electrical faults can significantly reduce energy generation efficiency.

Traditional solar installations often rely on manual inspection and periodic measurements, which cannot provide real-time performance analysis. Undetected faults or efficiency degradation may lead to energy loss, reduced system lifespan, and increased maintenance costs. Therefore, intelligent monitoring systems capable of collecting and analysing solar performance data remotely have become essential.

This system consists of multiple sensors, including current sensors and temperature sensors, strategically placed on the solar panels to measure crucial performance metrics. The Arduino, acting as the main controller, gathers sensor data and processes it to calculate various parameters like current generated, voltage output, and temperature that all are shown in lcd display and internet webserver also.

Real-time visualization allows users to monitor solar system health from any location, improving maintenance planning and ensuring optimal energy utilization.

Problem Statement

• Solar panel efficiency decreases approximately 0.4–0.5% per °C increase above standard operating temperature.

• Poor maintenance can reduce energy output by 10–25% annually.

• Remote monitoring reduces maintenance cost and downtime significantly.

• IoT-based renewable monitoring enables predictive maintenance and energy optimization.

Objectives

• To monitor solar panel voltage and current in real time.

• To measure environmental temperature and humidity affecting efficiency.

• To display live parameters on a 16×2 LCD display.

• To transmit solar performance data to an IoT cloud platform.

• To improve solar energy utilization through continuous monitoring.
• To provide data analytics capability for solar system performance evaluation.

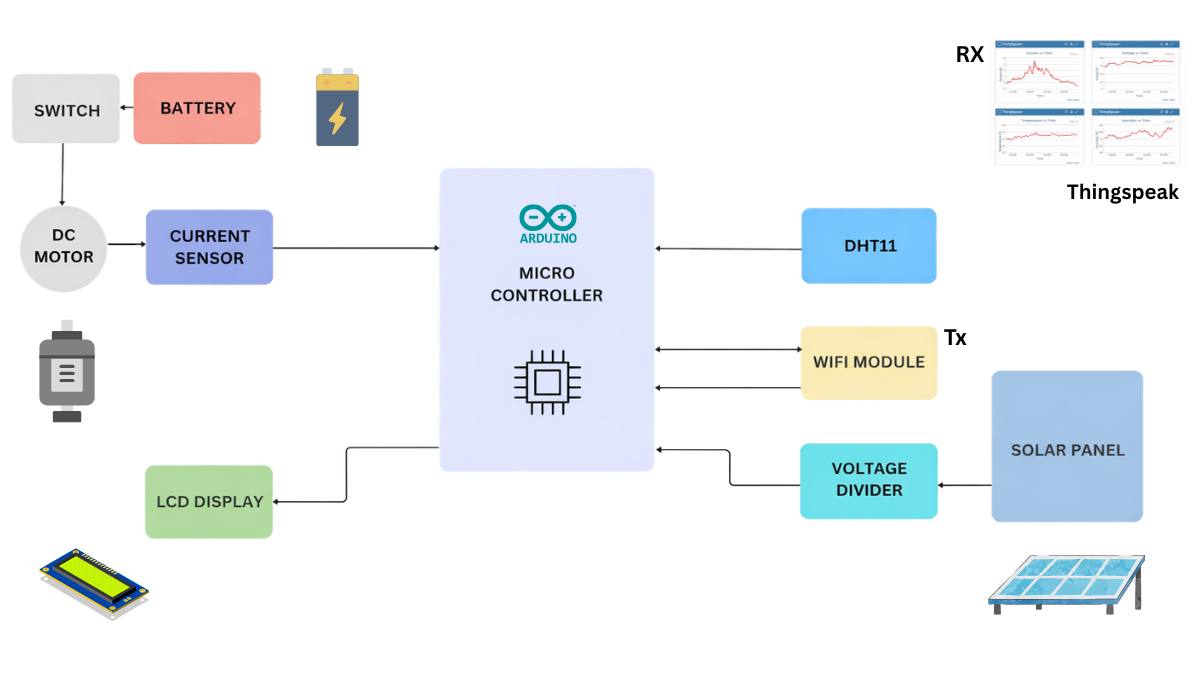

BLOCK DIAGRAM

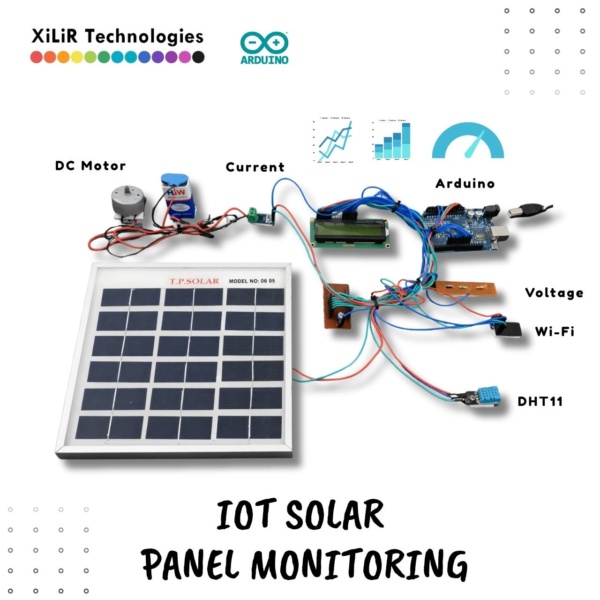

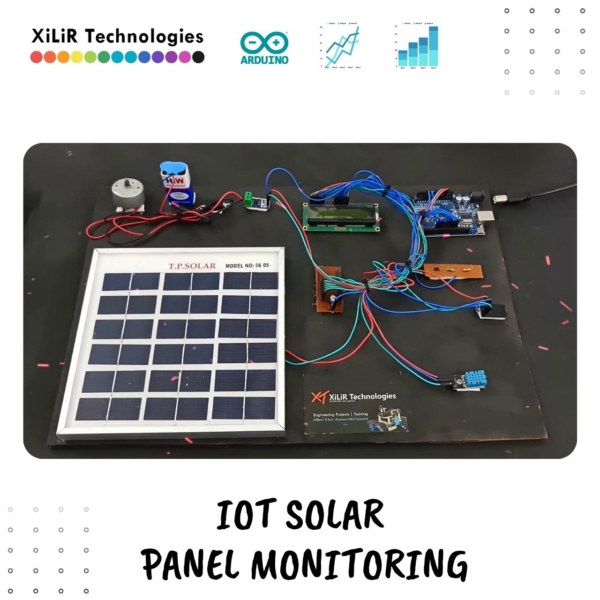

🔧 HARDWARE COMPONENTS

1. Arduino Microcontroller (UNO/Nano)
2. Solar Panel
3. Voltage Divider Circuit
4. Current Sensor Module
5. Battery
6. Power Hub Circuit
7. Switch
8. DC Motor / Load
9. LCD Display (16×2)
10. ESP8266 Wi-Fi Module
11. DHT11 Temperature & Humidity Sensor
12. Jumper Wires and Connectors

💻 SOFTWARE

1. Arduino IDE
2. Embedded C Programming
3. ThingSpeak Cloud Platform
4. Serial Communication Protocol

🧠 IoT Intelligence Layer

The IoT system enables:

• Continuous real-time monitoring

• Cloud data logging

• Remote accessibility

• Performance trend visualization

• Early detection of efficiency reduction

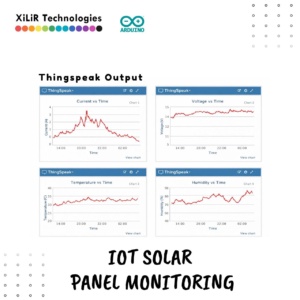

ThingSpeak analytics provides graphical representation of:

• Voltage variation trends

• Current generation patterns

• Temperature influence on output

• Environmental impact analysis

This converts a basic solar setup into a smart renewable energy monitoring system.

⚙️ Methodology

The Arduino continuously reads sensor values through analogue and digital pins. Voltage from the solar panel is scaled using a voltage divider before entering the microcontroller. Current flowing through the load is measured using a current sensor module. Environmental parameters are obtained through the DHT11 sensor.

The collected data is processed and displayed on the LCD screen for local monitoring. Simultaneously, the ESP8266 module connects to Wi-Fi and uploads multi-field data to ThingSpeak channels, where parameters such as voltage, current, temperature, and humidity are visualized as real-time graphs.
