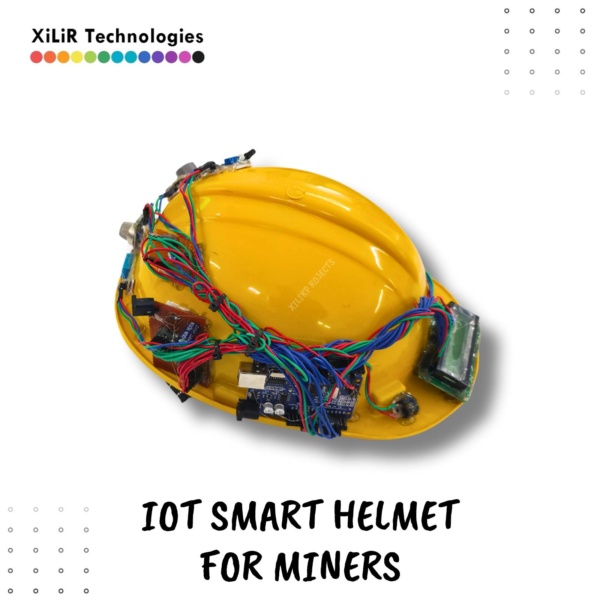

IOT based Smart Helmet for Miners Safety

Description

Introduction

Mining has been one of the most crucial industries for economic development since the industrial revolution. However, it has also consistently ranked among the most dangerous occupations in the world. Historically, miners have faced life-threatening hazards such as toxic gas exposure, high temperatures, humidity, suffocation due to oxygen depletion, and physical accidents from cave-ins or equipment failure. Traditional protective helmets provided only physical protection, leaving workers vulnerable to invisible dangers like carbon monoxide, methane, and other poisonous gases.

According to the International Labour Organization (ILO), mining accounts for less than 1% of the global workforce but contributes to around 8% of all fatal workplace accidents. Data shows that in coal mining alone, methane explosions and toxic gas inhalation remain the leading causes of fatalities, especially in developing nations where safety monitoring is minimal. For instance, thousands of miners worldwide suffer from gas inhalation incidents every year, and underground temperature/humidity levels often exceed safe thresholds, increasing the risk of dehydration and heat strokes. These alarming statistics emphasise the urgent need for smart, technology-driven safety solutions.

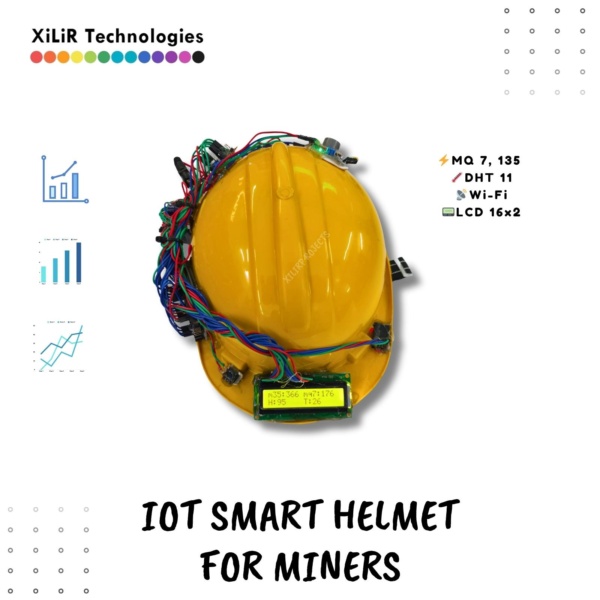

To address these challenges, this project introduces an IoT-based Smart Helmet for Miners. The helmet integrates multiple sensors: MQ7 & MQ135 gas sensors for detecting carbon monoxide, methane, and other toxic gases. DHT11 sensor for monitoring temperature and humidity. IR sensor for shock/impact detection.

The data from these sensors is processed by an Arduino microcontroller and displayed on a 16×2 LCD screen for real-time updates. Simultaneously, the system triggers a buzzer alarm when dangerous conditions are detected and transmits live readings to an IoT dashboard via Wi-Fi (ESP8266). This enables remote monitoring by supervisors, ensuring rapid response in emergencies.

The helmet thus enhances traditional physical protection by adding an intelligent, real-time monitoring system, ensuring better safety, faster rescue operations, and improved trust in mining environments.

Objectives

1. To detect hazardous gases
2. To monitor temperature (LM35) and humidity (DHT11).
3. To display live readings on a 16×2 LCD.
4. To send real-time safety data to IoT cloud via WiFi.

Block Diagram

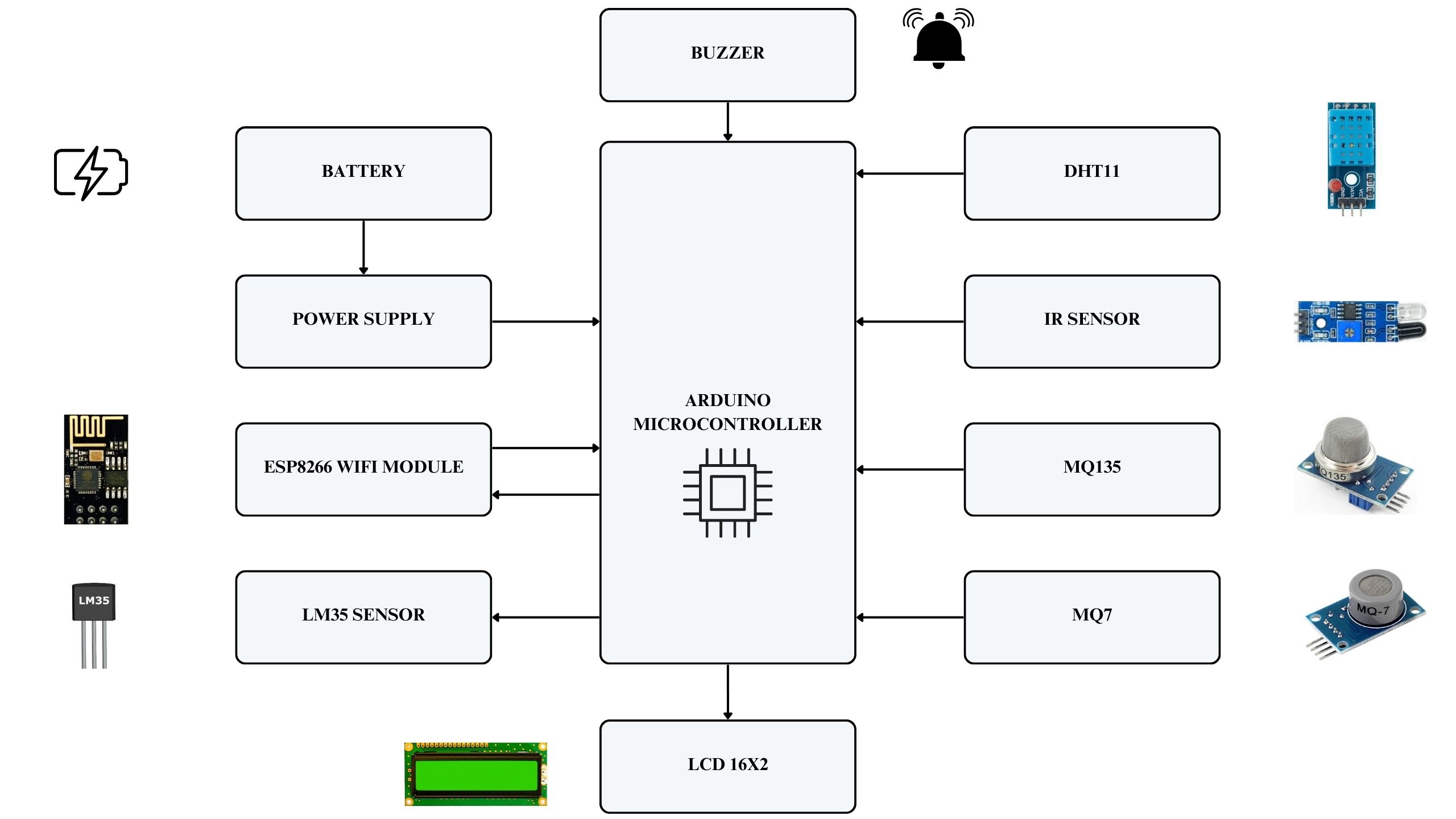

Block Diagram : IOT based Smart Helmet for Miners Safety

Components Required

1. Arduino Uno
2. Voltage Regulator
3. ESP8266 Wi-Fi Module
4. 16×2 LCD Display
5. Battery
6. MQ7 Gas Sensor
7. MQ135 Gas Sensor
8. LM35 Sensor
9. DHT11 Sensor
10. IR Sensor
11. Buzzer 5V

Methodology

The intelligent helmet operates by constantly checking mine environmental parameters using various sensors. Gas sensors (MQ6, MQ7, MQ135) identify harmful gases such as methane, carbon monoxide, and overall air pollution. The LM35 and DHT11 sensors check for heat and humidity levels to prevent miners from being subjected to harsh conditions. The IR sensor checks for helmet wear, only allowing shielded miners into dangerous areas. Arduino UNO processes all data gathered and presents readings on a 16×2 LCD. At the same time, ESP8266 Wi-Fi module sends the data to the ThingSpeak IoT cloud, where supervisors can monitor remotely and respond immediately in case of threshold crossing. This approach gives real-time alerts and predictive safety management, hence making mining operations safer and more reliable.

IoT smart helmet for miners, the future of mining, advanced smart helmet for miners, stay safe underground with our innovative helmet for miners, smart helmet for miners, real-time monitoring and protection, protective smart helmet for miners, your safety solution, experience next-level safety with our smart helmet for miners, ultimate helmet for miners,

IOT based Smart Helmet for Miners working in Hazardous Areas

Iot Based Smart Helmet For Coal Mining Tracking

#IoTSmartHelmet #ArduinoProjects #MiningSafety#WorkerSafety #GasDetection #ArduinoUNO#IoTMonitoring #FinalYearProject #CapstoneProject#SmartMining #IndustrialSafety

✨ Key Features

1. ✅ Gas Detection (CO, CO₂, NH₃, Benzene, etc.) with MQ7 & MQ135 sensors
2. 🌡️ Environmental Monitoring – DHT11 measures temperature & humidity
3. 👁️ IR Sensor for shock & condition detection
4. 📟 16×2 LCD Display – shows real-time values
5. 📡 IoT Dashboard (ThingSpeak) – remote data monitoring via Wi-Fi
6. 🔔 Buzzer Alerts for unsafe gas levels
7. 🔋 Rechargeable battery-powered for field use
8. 🎓 Ready-to-use academic project with docs, PPT, and training support

================

# 🔖 What’s Included in Your Smart Cooling Helmet Project Kit?

💯 Fully Working & Assembled – Just plug and present
📘 Academic Docs – Includes synopsis, PPT, report & diagrams
🔄 Circuit & Block Diagrams – Clear and labelled
💻 Arduino Code + Training – Upload & customize easily
⚙️ Working Principle Explained – Easy-to-understand logic
📦 Component Specs + BOM – All parts documented
📑 Datasheets Provided – For sensors and modules
🔌 Wiring Guide – Step-by-step interfacing
🎓 Viva Q&A Help – With expert support via WhatsApp
🚚 COD & Delivery – Safe shipping across India
🧰 Demo Ready – Easy to disassemble & explain
🙌 Custom Help – Need extras? Just ask!
❓Need custom features or upgrades? Just ask – We’re happy to help! 🙌

================

Get the full working project with components, code, diagrams & explanation

No branding on project, handmade look for students, and different styles as required by students.
