Industrial IoT Based Smart Bolt Loosening Monitoring System

Description

IoT-based Bolt Loosening Detection System for Structural Integrity Monitoring

#IoTBoltMonitoring #ArduinoProjects #StructuralHealthMonitoring
#IoTDefence #ArduinoUNO #FinalYearProject #CapstoneProject

📘 Introduction

As one of the most well-known connection methods, bolt connections are widely used for connecting components to structures because of their simplicity of maintenance disassembly. However, bolted joints may operate under various conditions during service life, such as humidity, high temperature and cyclic loads, which may reduce the preload of the bolts, cause structural instability, or even contribute to a catastrophic accident and failure of the entire structure. Thus, effective monitoring and diagnosis of the bolt connections are necessary to ensure that structures are safe and reliable.Bolted joints have universal application in machinery, vehicles, bridges, and defense systems. Bolt loosening with time under vibration, external loads, or fatigue can result in catastrophic mechanical failure and safety risks. Manual inspection, the conventional technique, is time-consuming and inaccurate.

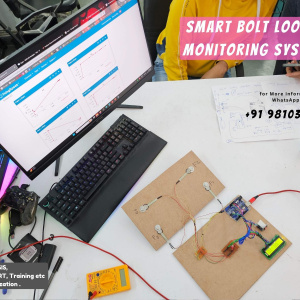

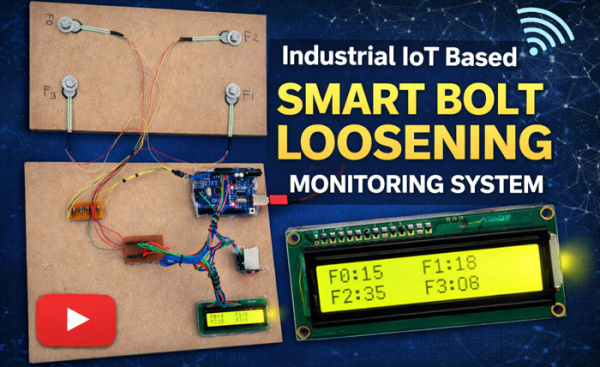

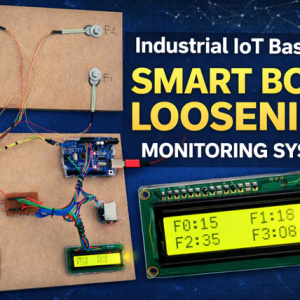

This project presents an IoT-based Bolt Loosening Detection System based on Arduino UNO, in which four force sensors (F1, F2, F3, F4) are mounted to bolts to measure tightening pressure in real time. The information from the sensors is shown on an LCD display and also sent to the ThingSpeak IoT cloud in real time through the ESP8266 Wi-Fi module.

Whenever any bolt begins to loosen, the system indicates the change in force applied and shows it as an alarm. ThingSpeak offers real-time graphical analysis, which allows engineers to monitor structural safety remotely. This system provides proactive maintenance, enhanced reliability, and accident avoidance in mechanical, civil, and defense applications.

Problem Statement

Nut-bolt fasteners play a critical role in ensuring the safety and stability of industrial structures and mechanical systems. Due to vibration, dynamic loads, thermal variations, and environmental effects, nut-bolt joints tend to loosen over time. Such loosening often goes unnoticed as traditional inspection methods are manual, periodic, and time-consuming. Undetected bolt loosening can result in structural failure, equipment damage, and serious safety risks. Existing systems lack real-time monitoring and remote accessibility. There is a need for a smart, low-cost solution capable of continuously monitoring nut-bolt tightening pressure. An IoT-based monitoring system can provide real-time detection, local display, and cloud-based visualization. This enables early identification of loosening conditions and supports predictive maintenance.

🎯 Objectives

• To Monitor real-time bolt tension using force sensors.
• To Display tightening/loosening data on an LCD.
• To Upload IoT data to ThingSpeak cloud using ESP8266.
• Improve safety by early detection of bolt loosening.

📊 Block Diagram

                                                             Block Diagram: IoT Based Bolt Loosening Detection System

🔁 System Overview

• Arduino UNO – Main microcontroller unit.
• Force Sensors (F1, F2, F3, F4) – Measure bolt pressure/tightness.
• 16×2 LCD Display – Shows bolt force values in real-time.
• ESP8266 Wi-Fi Module – Uploads sensor readings to ThingSpeak IoT cloud.
• ThingSpeak – Displays graphical visualization of bolt loosening/tightening trends.
• Power Supply – Rechargeable battery / regulated supply.

🛠️ Components Required

1. Arduino UNO
2. Force Sensors (F1, F2, F3, F4)
3. 16×2 LCD Display
4. ESP8266 Wi-Fi Module
5. Resistors & Voltage Divider Circuit (for ESP8266)
6. Power Supply (Rechargeable Battery/DC Adapter)
7. Jumper Wires & Connectors

⚙️ Methodology

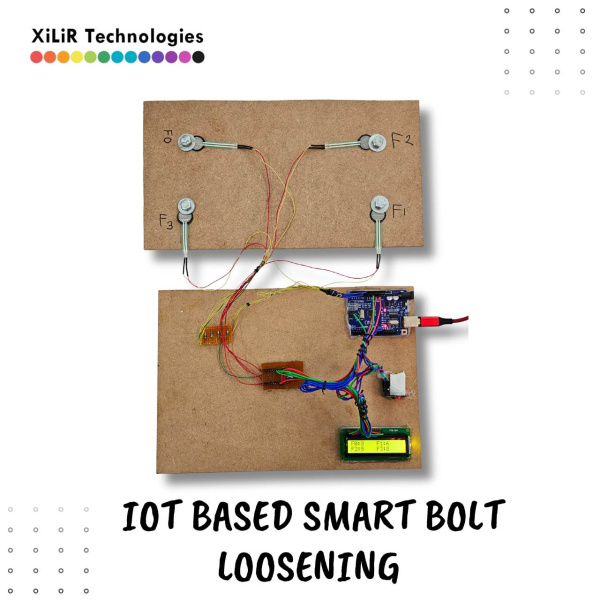

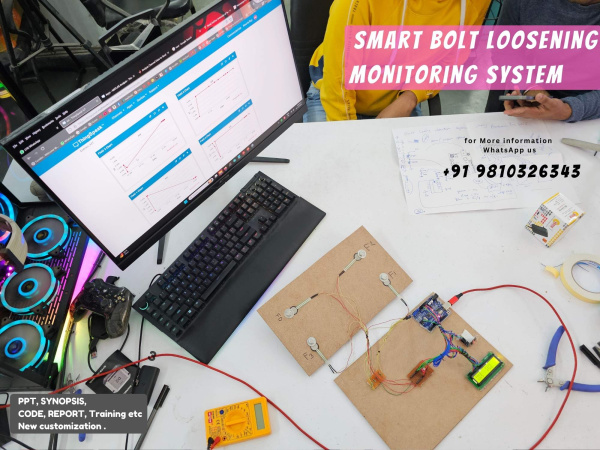

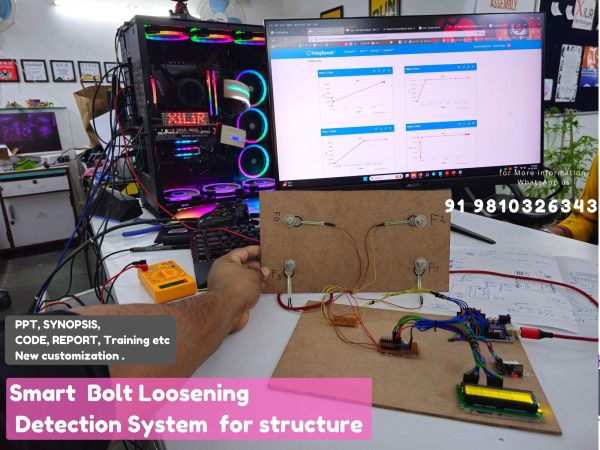

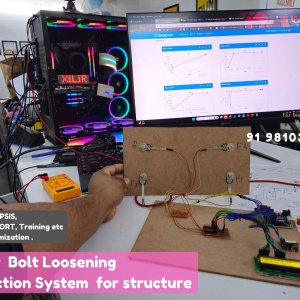

Four force sensors (F1, F2, F3, F4) are placed on the bolt heads to permanently monitor the tightening force exerted on every nut-bolt joint. The sensors produce analog signals in proportion to the applied pressure, such as those supplied through the analog input pins of the Arduino UNO. Arduino is coded to read and align the sensor readings such that raw readings are transformed to usable force values. The system compares these values constantly against set threshold levels; if any bolt indicates a reading below the safe level, the bolt is said to be loosening. Processed information is shown locally on a 16×2 LCD display, where simultaneous real-time force readings of all four bolts are displayed. This enables rapid on-site validation by the maintenance crew. To facilitate remote monitoring, the Arduino sends the sensor readings to an ESP8266 Wi-Fi module, which is internet-connected and uploads the readings to the ThingSpeak IoT cloud platform. On ThingSpeak, the force measurements are shown in the form of real-time graphical plots, enabling better visualization of trends in bolt tightness. When loosening happens, a visible drop shows up in the corresponding chart, giving prompt feedback to operators or engineers observing the system.

In due course, the data recorded can be used to detect gradual bolt tension changes, which assist in predictive maintenance. This allows for corrective action to be taken prior to final failure, thus avoiding mechanical damage or accidents. The methodology therefore combines real-time sensing, local display, and IoT monitoring based on cloud for a valid bolt loosening detection solution.

💡 Title Suggestions

• IoT Based Bolt Loosening Detection System using Arduino
• Arduino Force Sensor Project for Bolt Tightness Monitoring
• Real-Time IoT Monitoring of Bolt Health with ESP8266 & ThingSpeak
• Structural Safety Monitoring System with Arduino UNO
• IoT-Enabled Smart Bolt Loosening Detection for Defense & Industry
• Smart IoT Based Bolt Loosening Detection System Using Arduino
• Arduino IoT Based Bolt Loosening Monitoring for Industrial Safety
• IoT Enabled Bolt Loosening Detection Using Arduino and Vibration Sensor
• Real-Time Bolt Loosening Detection System Using Arduino & IoT
• Industrial IoT Based Smart Bolt Loosening Monitoring System
• Wireless IoT Bolt Loosening Detection Using Arduino and Cloud
• IoT Based Structural Bolt Loosening Detection Using Arduino UNO
• Smart Industry 4.0 Bolt Loosening Detection Using Arduino IoT

iot bolt monitoring, arduino bolt loosening project, force sensor bolt detection, structural health monitoring system, thingspeak bolt monitoring, iot based bolt project, bolt safety monitoring using Arduino, Arduino uno bolt force sensor, mechanical safety iot project, bolt tension detection, iot engineering projects, smart bolt loosening detection, final year arduino projects, esp8266 bolt monitoring system, realtime bolt loosening detection, arduino bolt monitoring with lcd, IoT based bolt loosening detection, Arduino bolt loosening system, smart bolt monitoring, industrial IoT safety project, bolt loosening detection using Arduino, vibration based bolt monitoring, IoT mechanical safety system, Arduino industrial project

🔖 What’s Included in Your IoT Bolt Loosening Project Kit?

💯 Fully Working & Assembled
📘 Docs – Includes synopsis, PPT, report & diagrams
🔄 Circuit & Block Diagrams – Clear and labelled
💻 Arduino Code + Training – Upload & customize easily
⚙️ Working Principle Explained
📦 Component Specs + BOM
📑 Datasheets Provided – For sensors and modules
🔌 Complete Wiring Guide
🎓 Viva Q&A Help – With expert support via WhatsApp
🙌 Need custom features or upgrades? Just ask – We’re happy to help! 🙌

🚚 Cash on Delivery Available – Safe & Secure delivery all over India!

🥇 Trusted by 20,50,000+ Students / Teachers & Innovators 💯 Since 2012
