Tomato Harvesting Robot using Raspberry Pi

Description

#Robotics#AgricultureAutomation #ArduinoProjects

#FinalYearProject#Aismartfarming

📘 Introduction

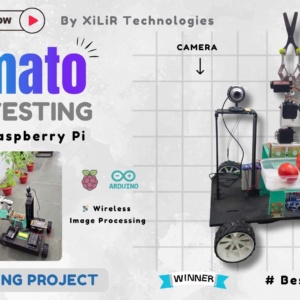

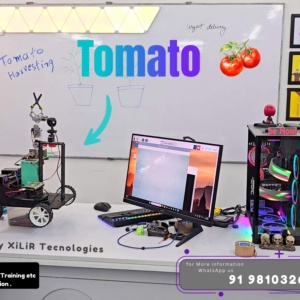

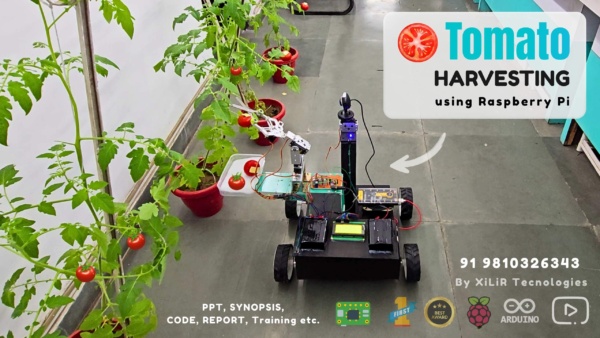

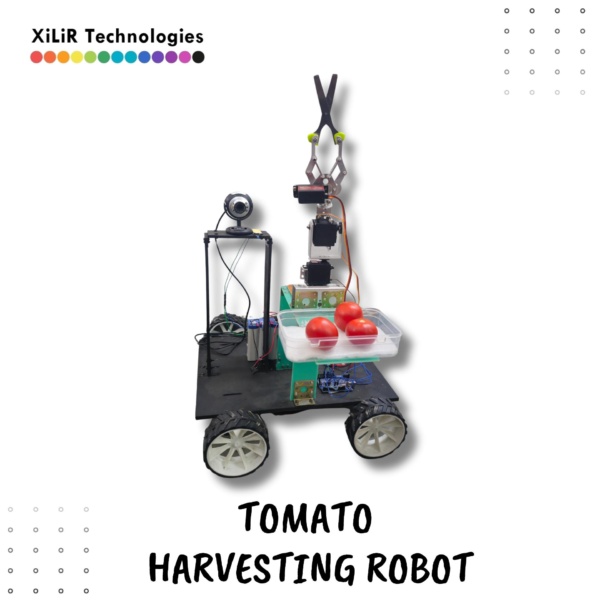

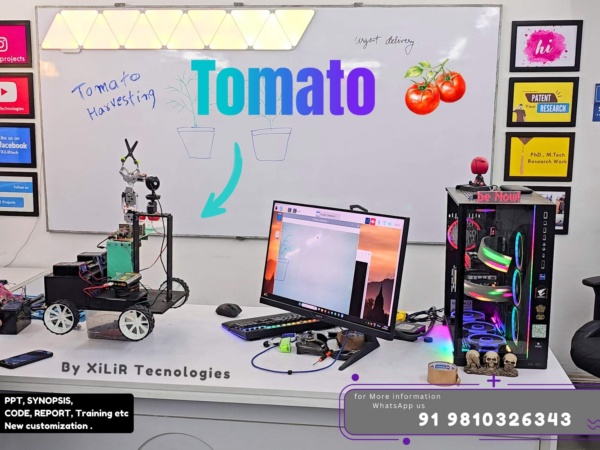

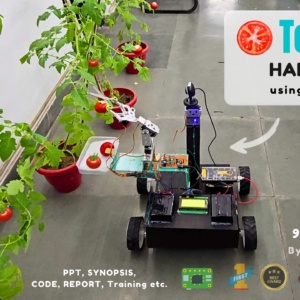

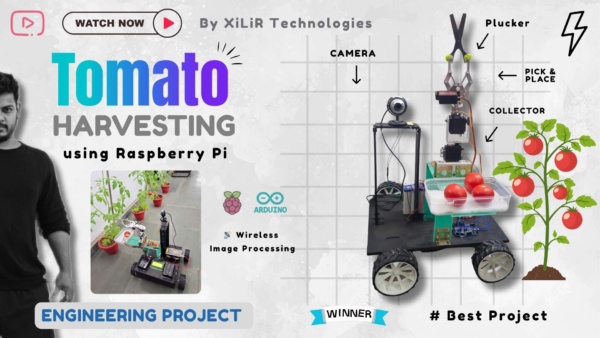

Promoting digital farming might be the answer for current challenges in the agriculture industry by employing a robot to provide continuous information of its deployed area and gives the right analysis in many aspects of farming. This project is about  employing a robot as a harvesting robot. This Tomato Harvesting Robot makes detection and picking of ripe tomatoes automatic with the use of Arduino UNO, Raspberry Pi, and servo motors. 4 DC motors power the robot base via an L293D motor driver for smooth field traversal. A USB camera on a 360° servo takes pictures of the tomatoes, and the Raspberry Pi analyzes them with image recognition algorithms using python to identify ripe tomatoes. When a tomato is identified, the 3 servo motor and scissor mechanism robotic arm moves into position to cut and harvest the tomato. Voice notifications (e.g., “Tomato Detected” or “Harvesting in Process”) come via an ISD 1820 sound module with amplifier and speaker, while live system status like direction of movement, detection, and harvesting updates are shown on a 20×4 LCD. A 12V battery powers the system for mobility in farming fields. This project demonstrates the convergence of robotics, computer vision, and automation for applications in smart agriculture to minimize human labor and maximize efficiency in the harvesting of tomatoes.

🎯 Objectives

1. Detect tomatoes using Raspberry Pi and camera module.
2. Provide 360° camera rotation for enhanced detection coverage.
3. Automate robotic arm movement with scissors for tomato harvesting.
4. Display real-time status on a 20×4 LCD and give audio alerts.

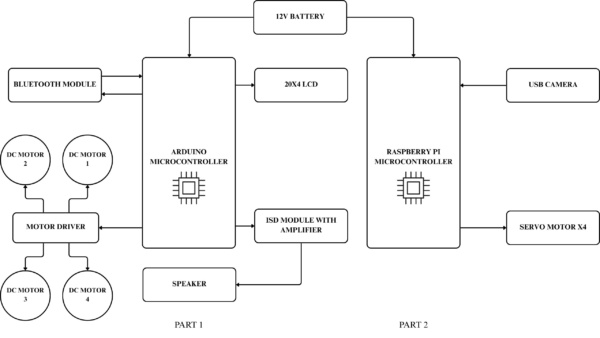

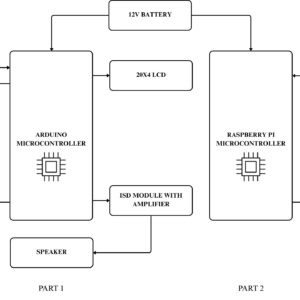

Block Diagram

                                                           Block Diagram : Tomato Harvesting Robot using Raspberry Pi

🛠️ Components Required

1. Arduino UNO
2. L293D Motor Driver Module
3. 4 × DC Motors (for robot movement)
4. 3 × Servo Motors (for robotic arm)
5. Raspberry Pi
6. USB Camera
7. 1 × Servo Motor (for camera 360° rotation)
8. ISD Voice Module with Amplifier & Speaker
9. 20×4 LCD
10. 12V Rechargeable Battery
11. Jumper Wires & Connectors
12. Mechanical Arm with Scissor Mechanism

Methodology

1. The Tomato Harvesting Robot is designed to combine image processing with robotic automation:
2. The Raspberry Pi captures live video using a USB camera and applies image recognition algorithms to identify ripe tomatoes.
3. A servo-mounted 360° rotating camera ensures a wide scanning area for detection.
4. Once a tomato is detected, the Pi sends a command to the Arduino Uno, which controls the robotic arm.
5. The arm, driven by 3 servo motors, aligns the scissor mechanism and cuts the tomato.
6. The base movement is controlled by Arduino through L293D motor driver and 4 DC motors.
7. An ISD sound module with speaker provides voice alerts, while a 20×4 LCD displays system status and updates.
8. The entire robot runs on a 12V rechargeable battery pack, making it suitable for field deployment.

This integration of computer vision, robotic arm automation, and audio-visual feedback makes the project an ideal solution for smart agricultural harvesting.

Title Suggestions

1. Tomato Harvesting Robot
2. Tomato Harvesting Robot using Raspberry Pi
3. Arduino Raspberry Pi Agriculture Robot
4. Smart Farming Robot
5. Agricultural Automation Robot
6. Robotics in Horticulture

AI and robotics in tomato harvesting, student project tomato harvesting robot, automatic robot for vegetable farms, crop detection camera system, AI tomato harvesting research, robotics based agricultural solutions, automated harvesting innovation, agriculture robot project, agricultural automation project, smart farming robot, robotic tomato picker, robotic harvesting system, crop harvesting robot, Arduino agriculture project, Raspberry Pi agriculture project, autonomous harvesting robot, IoT agriculture project, smart tomato harvesting, tomato harvesting automation, final year agriculture robot project, Arduino uno tomato harvesting robot, Raspberry Pi tomato detection, vision based tomato harvesting, image processing tomato detection, robotic arm tomato cutter, tomato detection camera Raspberry Pi

================

# 🔖 What’s Included in Your Smart Cooling Helmet Project Kit?

💯 Fully Working & Assembled
📘 Docs – Includes synopsis, PPT, report & diagrams
🔄 Circuit & Block Diagrams – Clear and labelled
💻 Arduino Code + Training – Upload & customize easily
⚙️ Working Principle Explained
📦 Component Specs + BOM
📑 Datasheets Provided – For sensors and modules
🔌 Complete Wiring Guide
🎓 Viva Q&A Help – With expert support via WhatsApp
🙌 Need custom features or upgrades? Just ask – We’re happy to help! 🙌

🚚 Cash on Delivery Available – Safe & Secure delivery all over India!

🥇 Trusted by 20,50,000+ Students / Teachers & Innovators 💯 Since 2012

================

Get the full working project with Components, Code, Diagrams & Explanation

No branding on project, handmade look for students, and different styles as required by students.
