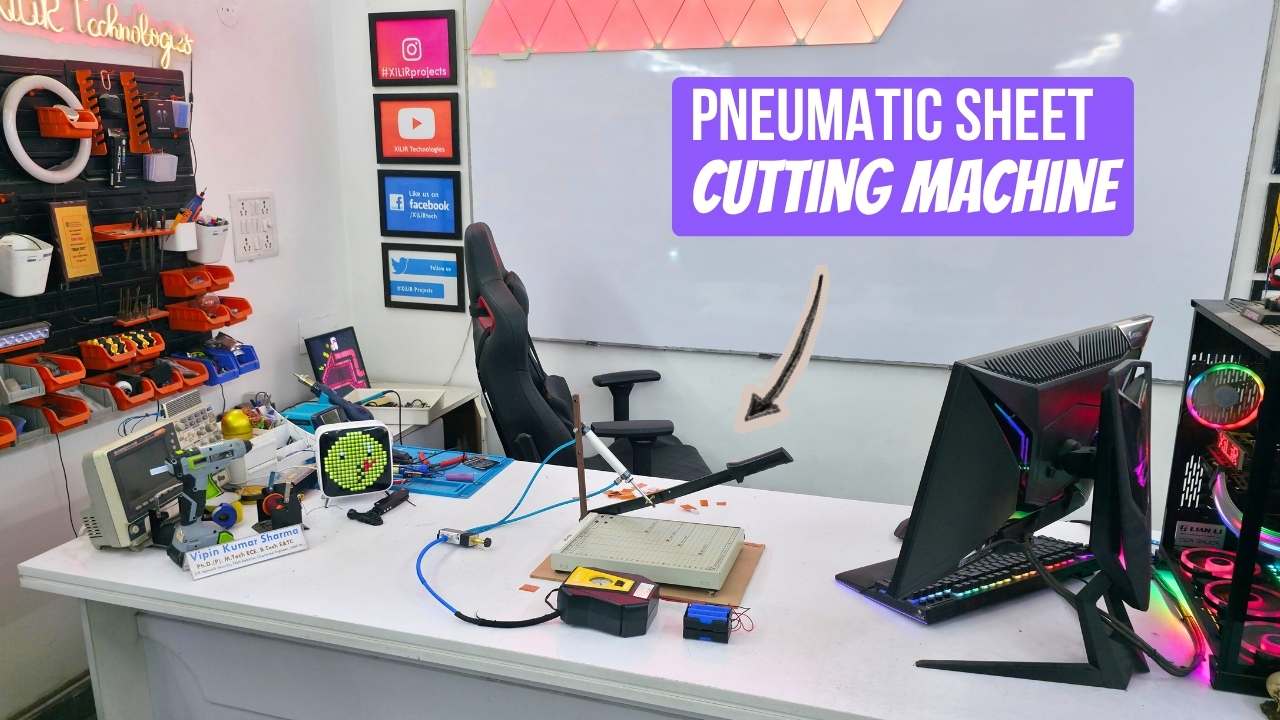

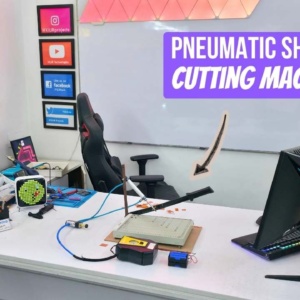

Pneumatic Sheet Cutting Machine

Description

This is Award-Winning Project you can select this as your major project, capstone project, competition, exhibition projects etc. (Highly Recommended)

Introduction

The development of portable and intelligent cutting systems has become increasingly important due to the rising demand for compact manufacturing solutions, low-cost automation, and energy-efficient fabrication technologies. Pneumatic systems have been widely adopted in industrial automation because of their simplicity, high force-to-weight ratio, fast response time, and lower maintenance requirements compared to hydraulic systems. A Pneumatic Sheet Cutter is an automated or semi-automated cutting mechanism that utilizes compressed air to actuate a pneumatic cylinder for generating cutting force on thin sheets and lightweight materials.

Historically, sheet cutting operations were primarily performed using manual cutters and hydraulic presses, which required significant human effort and occupied larger operational spaces. With the advancement of mechatronics, compact pneumatic systems combined with electronic control have enabled portable cutting solutions suitable for workshops, educational laboratories, small-scale manufacturing industries, and field applications.

The proposed Pneumatic Sheet Cutter integrates a DC air compressor, pneumatic cylinder, solenoid valve, portable lithium battery system, and mechanical linkage to create a lightweight and mobile cutting mechanism. Pneumatic actuation operates based on compressed air energy conversion where pressure energy is transformed into linear mechanical motion. According to Pascal’s Law, pressure applied to a confined fluid is transmitted equally in all directions, enabling the cylinder piston to generate large cutting forces using relatively low electrical power.

The cutting force generated by pneumatic systems can be represented by:

F = P × A

Where:

F = Force generated by cylinder (N), P = Air Pressure (Pa), A = Effective piston area (m²)

The piston area is: A = πD² / 4

Where:

D = Diameter of piston (m)

This relationship demonstrates that increasing cylinder diameter or operating pressure directly increases cutting capability.

Portable pneumatic cutting systems reduce operator fatigue, improve repeatability, increase safety, and provide efficient sheet cutting with lower operational complexity, making them suitable for modern engineering applications and industrial automation environments.

Objectives

• To design and develop a portable pneumatic sheet cutting system using compressed air actuation.

• To reduce human effort involved in conventional sheet cutting operations.

• To achieve efficient cutting performance using battery-operated pneumatic components.

• To develop a compact and lightweight cutting mechanism suitable for portable applications.

• To improve operational safety and cutting consistency using pneumatic automation.

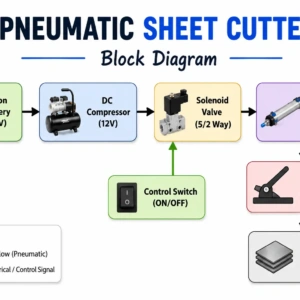

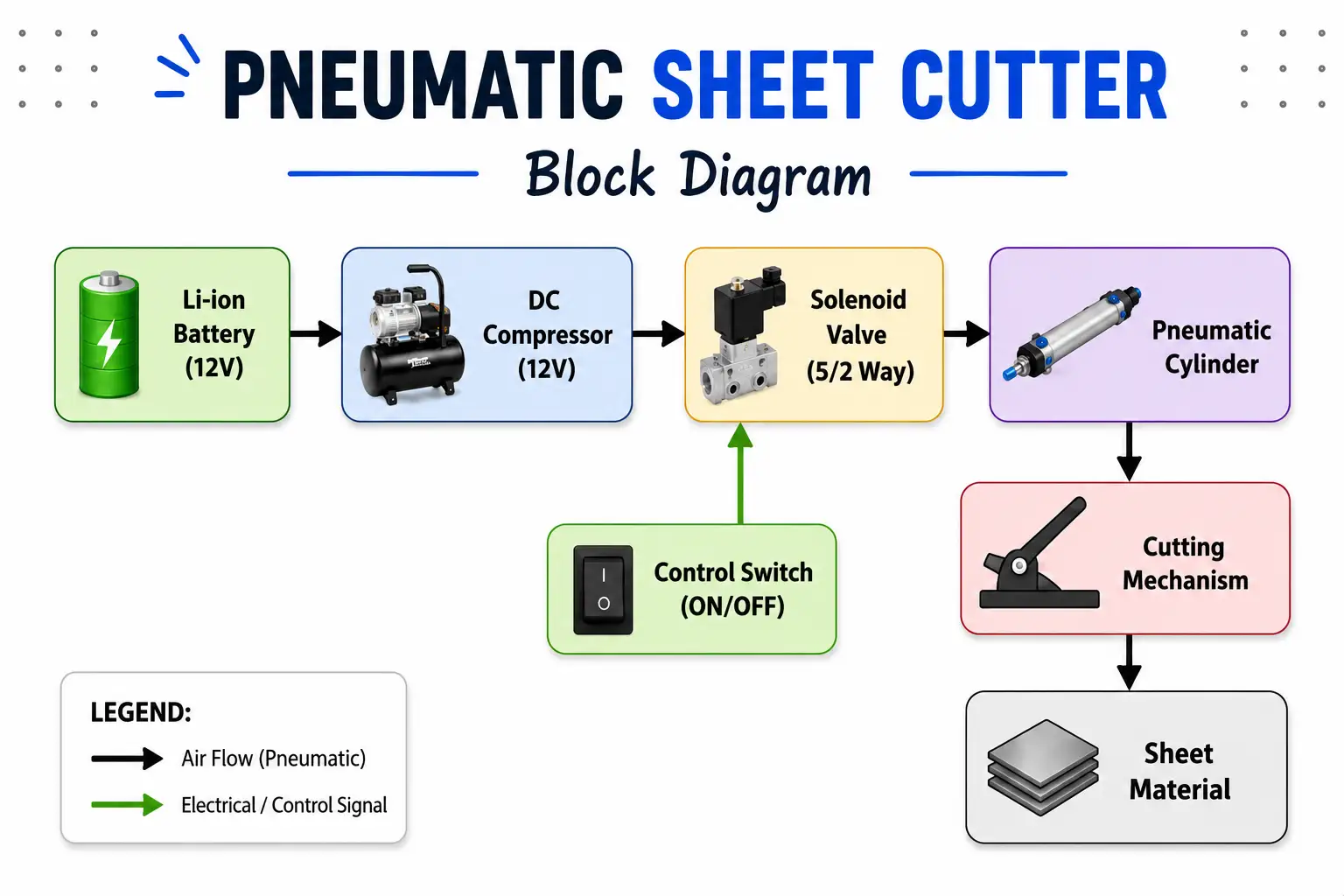

BLOCK DIAGRAM

Block Diagram of Pneumatic Sheet CuttingHARDWARE COMPONENTS

• Pneumatic Cylinder / Pneumatic Piston

• Solenoid Valve

• DC Air Compressor

• Lithium-Ion Battery Pack

• Pneumatic Tubing

• MDF / Wooden Base Structure

• Sheet Cutting Blade Assembly

• Switches and Connectors

• Relay Module

• Mechanical Linkages

• Nuts, and Bolts

Working

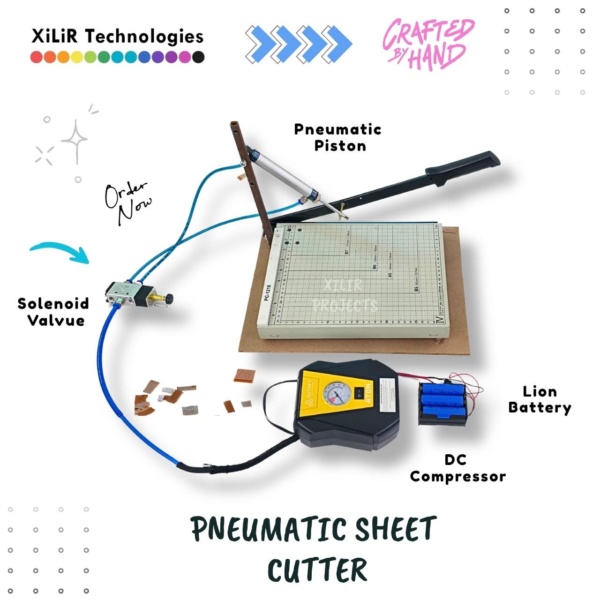

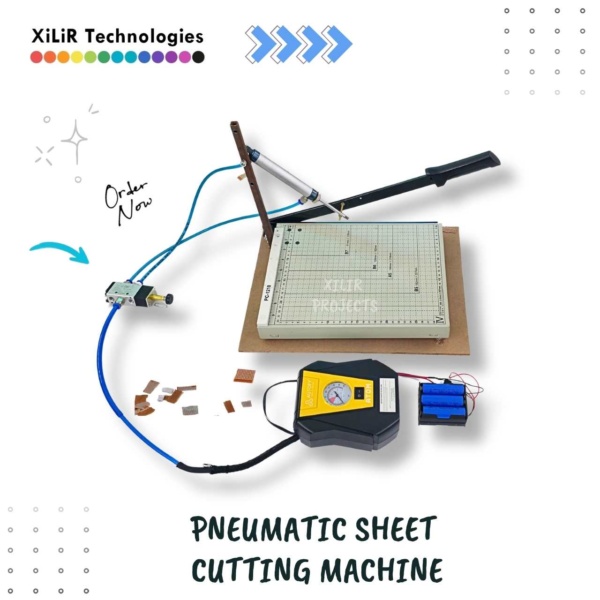

The Pneumatic Sheet Cutter is constructed using a lithium-ion battery, DC air compressor, solenoid valve, pneumatic cylinder, pneumatic tubing, and cutting mechanism. Initially, the 12V lithium-ion battery is connected to the DC compressor to provide electrical power for compressed air generation. The output of the compressor is connected to the input port of the solenoid valve using pneumatic tubing. The solenoid valve acts as a control component that regulates the compressed air flow toward the pneumatic cylinder.

The output ports of the solenoid valve are connected to the pneumatic cylinder through air pipes. The piston rod of the pneumatic cylinder is mechanically connected to the cutting lever mechanism. The cutting blade assembly is mounted on the cutting platform where sheet material is placed for cutting operation. A control switch is connected between the battery supply and solenoid valve circuit for manual activation.

During operation, when power is supplied, the compressor starts generating compressed air and builds pressure inside the pneumatic line. Upon activating the control switch, the solenoid valve opens and allows compressed air to enter the pneumatic cylinder. Due to the pressure difference inside the cylinder chamber, the piston rod extends outward and produces linear motion. This linear motion is transferred through the lever mechanism to the cutting blade, producing sufficient force to cut the sheet material placed below it.

The force generated by the pneumatic cylinder can be expressed as:

F = P × A

Where:

F = Generated Cutting Force (N)

P = Pneumatic Pressure (Pa)

A = Effective Piston Area (m²)

The piston area is calculated as:

A = πD² / 4

Where:

D = Diameter of Cylinder Piston (m)

After completion of the cutting cycle, releasing the switch stops air flow and the piston returns to its initial position, preparing the system for the next cutting operation. This process enables efficient, portable, and low-effort sheet cutting using compressed air technology.

Pneumatic Sheet Cutter, Portable Sheet Cutting Machine, Pneumatic Cutting Machine Project, Arduino Pneumatic Project, Electro Pneumatic System, Battery Powered Sheet Cutter, Pneumatic Cylinder Project, Pneumatic Automation Project, Engineering Mini Project, Mechanical Engineering Project, Pneumatic Cutting System, Pneumatic Sheet Cutting Machine, IEEE Pneumatic Project, Low Cost Sheet Cutter, Portable Pneumatic Machine, DC Compressor Project, Industrial Automation Project, Pneumatic Engineering Project, Smart Cutting Machine, Pneumatic Piston Cutting System

Pneumatic Sheet Cutter Project, Pneumatic Sheet Cutter Engineering Project, Pneumatic Sheet Cutter for Final Year Students, Mechanical Engineering Final Year Project, Diploma Mechanical Project, Pneumatic Cutting Machine Project, Pneumatic Engineering Project, Pneumatic Cylinder Based Project, Final Year Engineering Project, Major Project for Mechanical Engineering Students, Minor Project for Mechanical Students, Diploma Engineering Project, BTech Mechanical Project, MTech Mechanical Project, Polytechnic Mechanical Project, Engineering Project for Students, Innovative Mechanical Project, Industrial Automation Project, Mini Project for Engineering Students, Final Year Major Project, Engineering Project with Pneumatic System, Pneumatic Automation Project, Portable Cutting Machine Project, Low Cost Engineering Project, DIY Mechanical Engineering Project, Engineering Project for College Students, Mechanical Mini Project, Pneumatic Based Final Year Project, Mechanical Design Project, Manufacturing Engineering Project, Production Engineering Project, Final Year Project for Diploma Students, Engineering Exhibition Project, Mechanical Workshop Project, Industrial Project for Students, BE Mechanical Project, BTech Major Project, Engineering Model Project, Latest Mechanical Engineering Project, IEEE Mechanical Engineering Project, Final Year Engineering Ideas, Mechanical Engineering Innovation Project, Pneumatic Machine Project for Students, Mechanical Project for College, Major Project for Diploma Students, Capstone Project Mechanical Engineering, Portable Pneumatic Cutting System, Student Engineering Project, Engineering Research Project

Titles Ideas

• Design and Development of Portable Pneumatic Sheet Cutter Using Compressed Air Technology
• Battery Powered Pneumatic Sheet Cutting Machine for Industrial Applications
• Smart Portable Pneumatic Sheet Cutter Using DC Compressor Technology
• Development of Compact Pneumatic Sheet Cutting System for Engineering Applications
• Low Cost Pneumatic Sheet Cutter Using Portable Air Compression System
• Design of Lightweight Pneumatic Cutting Mechanism for Metal Sheet Applications
• Portable Electro Pneumatic Sheet Cutting Machine Using Battery Power
• Intelligent Pneumatic Sheet Cutting System for Small Scale Manufacturing
• Development of Energy Efficient Pneumatic Sheet Cutter Using Lithium Battery Technology
• Automated Pneumatic Sheet Cutting Machine Using Compact Air Compression System

🔹 🔹 🔹 🔹 🔹 🔹 🔹 🔹 🔹 🔹

Get the full working project with components, code, diagrams & explanation

No branding on project, handmade look for students, and different styles as required by students.

To Buy/ Make this project with training
