Advanced Sewage Waste Cleaning Plant

Description

📘 Introduction

In modern urban areas, sewage systems frequently face problems such as solid waste accumulation, water blockage, and overflow during heavy rainfall. These issues often lead to flooding, environmental pollution, and serious health hazards. Traditional manual cleaning methods are inefficient, time-consuming, and unsafe for workers. Therefore, there is a strong need for an automated and intelligent sewage cleaning solution.

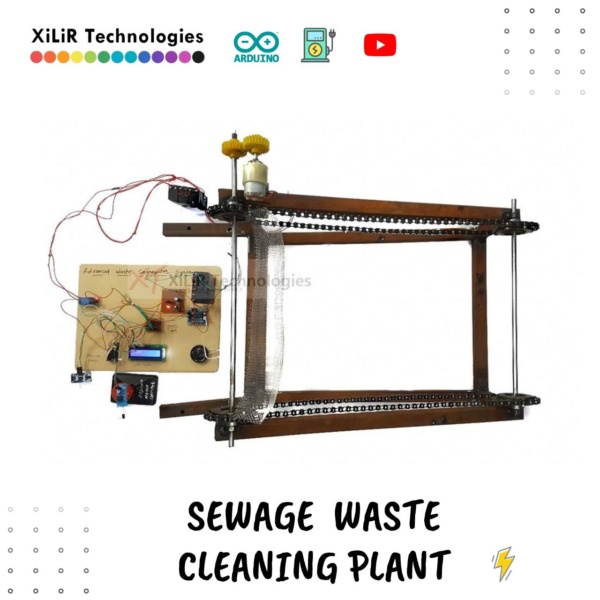

The Advanced Sewage Waste Cleaning Plant is a mechanical and Arduino-based automated system designed to remove floating waste and solid obstacles from sewage channels efficiently. The system uses a chain conveyor garbage collecting mechanism driven by a motor to lift and remove waste materials from water.

To make the system energy-efficient, the motor operates only when necessary — such as during flood conditions (detected using an ultrasonic sensor) or when garbage/obstacles are detected (using an IR sensor). If no blockage or flood condition is present, the motor remains OFF, thereby saving electrical power. The system is controlled by an Arduino microcontroller, which processes sensor inputs and manages the motor through a relay. A 16×2 LCD display provides real-time system status, including water level, garbage detection, and motor condition.

Additionally, the project includes a voice alert module connected to a speaker, which provides audio notifications such as flood detection or system activation. This enhances monitoring capability and makes the system more suitable for industrial and municipal applications.

By combining mechanical engineering principles with embedded system technology, this project offers a smart, automated, energy-efficient, and environmentally friendly solution for modern sewage waste management systems.

🎯 Objectives

1. To design and develop an automated mechanical system for efficient sewage waste removal.

2. To reduce manual labor and improve worker safety during sewage cleaning operations.

3. To prevent water blockage and flooding caused by accumulated garbage in drainage systems.

4. To implement a smart sensor-based detection system using Ultrasonic and IR sensors for automatic operation.

5. To develop an energy-efficient mechanism where the motor operates only when required to save power.

6. To provide real-time system monitoring using a 16×2 LCD display.

7. To enhance safety and awareness through a voice alert system with speaker.

8. To create a cost-effective, reliable, and environmentally friendly solution suitable for municipal and industrial sewage management.

BLOCK DIAGRAM

HARDWARE COMPONENTS

• REGENERATIVE SYSTEM
• BATTERY
• VOLTAGE REGULATOR
• RELAY
• BATTERY (FOR MOTOR)
• MOTOR
• GARBAGE COLLECTING MECHANISM
• ULTRASONIC SENSOR
• IR SENSOR
• VOICE MODULE
• SPEAKER
• JUMPER WIRES

SOFTWARE

• ARDUINO IDE
• EMBEDDED C

📘 Methodology

The methodology of the Advanced Sewage Waste Cleaning Plant involves a systematic approach that includes: (1) designing a strong mechanical frame and selecting a chain and sprocket garbage collecting mechanism for lifting waste materials efficiently, (2) integrating an Arduino microcontroller as the main control unit to process all sensor inputs and manage system operations, (3) installing an Ultrasonic Sensor to monitor water level and detect flood conditions, (4) placing an IR Sensor to identify garbage or obstacles in the sewage channel, (5) developing control logic in Arduino such that the motor turns ON only when flood level rises or garbage is detected and remains OFF otherwise to save power, (6) connecting a relay module to safely control the motor operation, (7) implementing a 16×2 LCD display to show real-time system status including water level, garbage detection, and motor condition, (8) integrating a voice module with speaker to provide audio alerts during flood detection or system activation, (9) designing a regulated power supply using a 12V battery and voltage regulator for stable operation, and (10) testing the complete system under simulated flood and garbage conditions to verify performance, efficiency, and reliability.
