AI-Based Drone Detection & UAV Tracking System Using NVIDIA Jetson Nano

Description

AI-Based Drone Detection & UAV Tracking System Using NVIDIA Jetson Nano

Product Overview

The AI-Based Drone Detection & UAV Tracking System is an intelligent surveillance solution designed to detect, identify, and track drones (UAVs) in real time using NVIDIA Jetson Nano, Artificial Intelligence (AI), Computer Vision, YOLO, and OpenCV. The system continuously analyzes live video captured through a camera and accurately identifies drones with high speed and precision.

With the rapid increase in drone usage, unauthorized UAVs have become a major concern for military installations, airports, industrial facilities, government buildings, and other critical infrastructures. This project provides a reliable edge AI solution capable of detecting aerial threats without relying on cloud processing. The NVIDIA Jetson Nano performs all AI computations locally, ensuring fast response times and enhanced security.

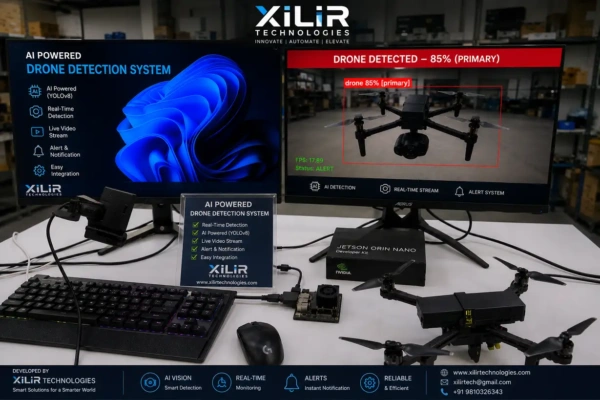

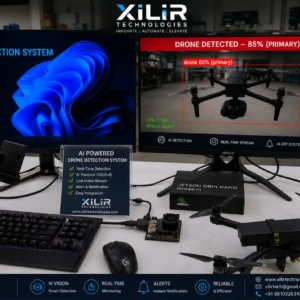

When a drone is detected, the system highlights the target on the display with a bounding box and confidence score while simultaneously activating an audible alarm through the receiver unit, allowing security personnel to respond immediately.

Key Features

• AI-Based Drone Detection
• Real-Time UAV Tracking
• NVIDIA Jetson Nano Edge AI Processing
• YOLO Object Detection Algorithm
• OpenCV-Based Computer Vision
• Live Video Processing
• High-Speed Object Recognition
• Automatic Drone Identification
• Real-Time Bounding Box Tracking
• High Detection Accuracy
• Low Latency Performance
• Multiple Drone Detection Support
• Edge AI Processing Without Internet
• Easy Integration with Existing Surveillance Systems
• User-Friendly Interface
• Expandable and Customizable Platform

Audible Receiver Alert & Customization

The system includes a dedicated receiver unit equipped with a built-in buzzer that instantly generates an audible alarm whenever a drone is detected within the camera’s surveillance area. This immediate sound alert helps security personnel quickly recognize potential aerial threats even without continuously monitoring the display.

The alarm system is fully customizable according to the user’s requirements. The buzzer tone, sound pattern, alert duration, activation distance, detection sensitivity, operating modes, notification logic, and overall system functionality can be modified based on the intended application. Additional features such as LED indicators, relay outputs, GSM/SMS notifications, wireless communication modules, mobile app alerts, sirens, or integration with existing security systems can also be incorporated as required.

This flexibility makes the project suitable for a wide range of applications including army surveillance, defence installations, border security, airports, industrial facilities, smart cities, research laboratories, and customized commercial security solutions.

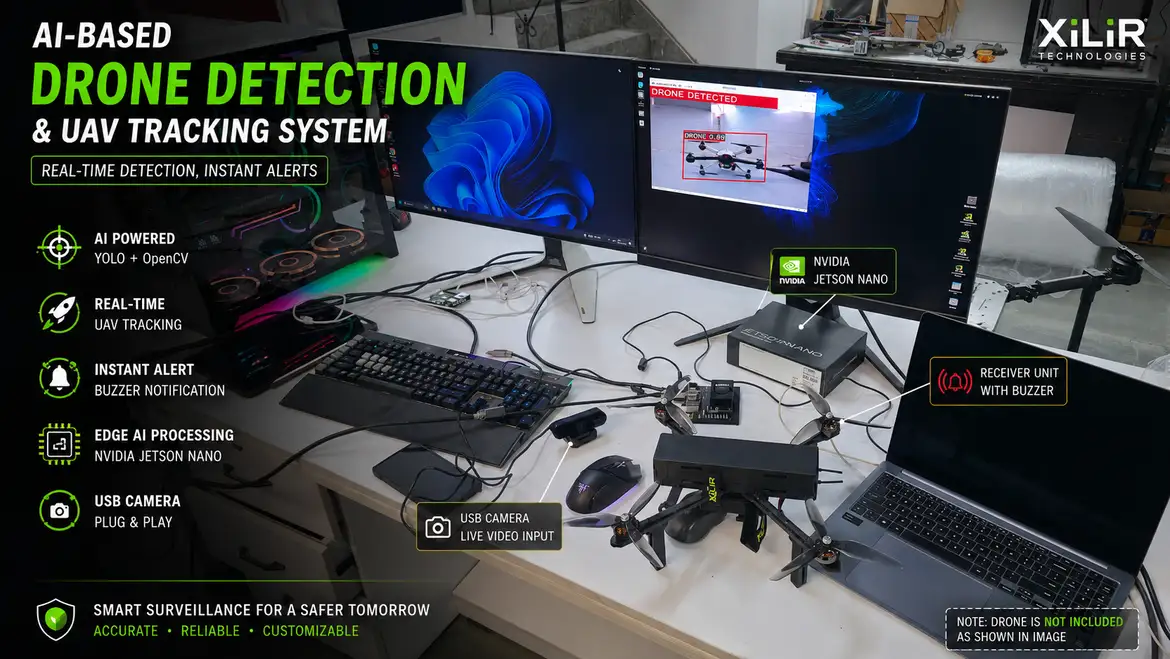

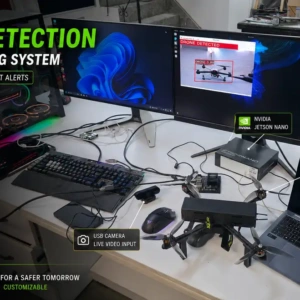

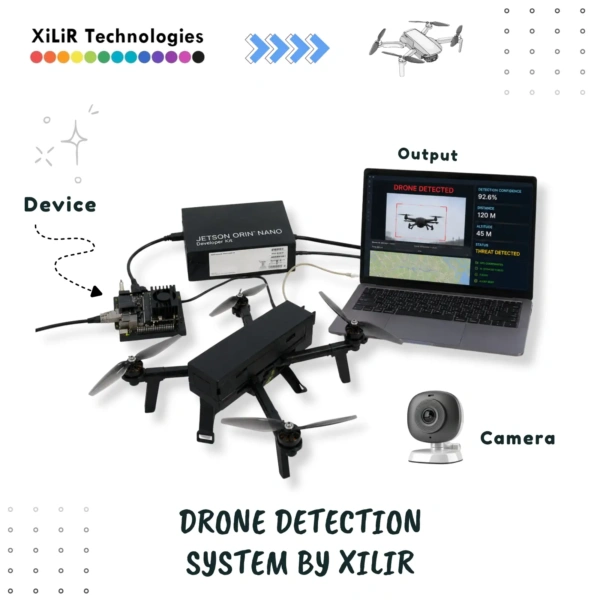

Hardware Components

• NVIDIA Jetson Nano Developer Kit
• HD USB Camera / Raspberry Pi Camera Module
• Receiver Unit
• Buzzer Module
• Display Monitor
• Power Supply
• MicroSD Card
• HDMI Cable
• USB Keyboard & Mouse

Software Requirements

• Ubuntu
• Python
• OpenCV
• YOLO (You Only Look Once)
• CUDA
• TensorRT
• NVIDIA JetPack SDK

Working Principle

The camera continuously captures live video from the surrounding environment. The NVIDIA Jetson Nano processes each frame using a trained YOLO deep learning model to detect drone-shaped objects in real time.

Once a drone is identified, the system draws a bounding box around the detected UAV and displays the confidence score on the monitor. Simultaneously, the receiver unit activates the buzzer to alert nearby operators. The drone is continuously tracked as it moves across the camera’s field of view, enabling uninterrupted surveillance.

Since all processing is performed directly on the Jetson Nano, the system provides high-speed, low-latency detection without requiring cloud connectivity. Depending on customer requirements, additional alert mechanisms and communication modules can be integrated into the system.

Applications

• Army Surveillance Systems
• Defence Monitoring
• Border Security
• Military Bases
• Airport Security
• Anti-Drone Systems
• Smart City Surveillance
• Industrial Security
• Critical Infrastructure Protection
• Government Facility Monitoring
• Research Laboratories
• Educational AI Projects
• Engineering Final Year Projects
• Computer Vision Research

Customization Options

The project can be customized according to specific customer or organizational requirements. Possible customizations include:

• Receiver Buzzer with Different Alarm Patterns
• Adjustable Detection Range and Sensitivity
• GSM/SMS Alert System
• Wi-Fi or IoT Cloud Monitoring
• Mobile Application Notifications
• LED Warning Indicators
• Relay Output for Automatic Security Response
• PTZ Camera Integration
• Multi-Camera Support
• GPS-Based Location Reporting
• Automatic Image and Video Recording
• Data Logging and Event History
• Custom AI Models for Different Drone Types
• Integration with Existing Security Infrastructure
